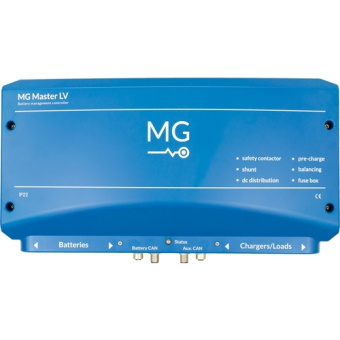

MG Energy Systems MGMLV481002 - Master LV 24-48V/1000A (M12)

MG Energy Systems MGMLV481002 - Master LV 24-48V/1000A (M12)

The MGMLV481002 Master LV plays a pivotal role as the safety and control unit in battery systems, ensuring protection, monitoring, and control for a safe, reliable, and user-friendly experience. This versatile unit safeguards connected battery modules from overcharging, overdischarging, overtemperature, and undertemperature, while efficiently managing cell balancing. Beyond safety features, the Master LV monitors crucial parameters, offering insights into battery status and energy consumption. Its compact design makes it an ideal choice for applications with limited space, ensuring seamless integration into diverse setups.

Module Specifications:

• Voltage: 144 to 800V
• Current: 300A and 500A versions available

The MGMLV481002 boasts a range of features, including a redundant battery management system, easy installation, integrated pre-charging, and adherence to the highest safety standards. Internal event logging ensures a comprehensive record of system activities, aiding in diagnostics and system optimization. Power connectors equipped with Amphenol PowerLok connectors facilitate easy charging of a variety of batteries, offering ruggedness and integrated High Voltage Interlock Loop (HVIL) for connection monitoring. The low contact resistance allows a continuous current of up to 1000A, making it a robust choice for demanding applications.

Monitoring and Control:

The Master LV monitors critical parameters such as cell voltages and temperatures for each connected battery module. Control boundaries, warning limits, and critical fault thresholds are set to ensure optimal system performance. The well-integrated system minimizes safety contactor activations during normal operation, enhancing overall reliability.

Diagnostic Tool Software:

Diagnosing battery systems is simplified with the diagnostic tool software, providing detailed information during commissioning, system testing, service, maintenance, and troubleshooting. The software displays and logs main values like voltage, current, and state of charge. Additionally, it offers detailed battery information, historical values, and stored events, promoting flexibility with configurable settings such as CAN bus protocol selection or adding functions to dedicated outputs.

Experience advanced safety, control, and monitoring capabilities with the MGMLV481002 Master LV from MG Energy Systems, a key component in creating efficient and reliable battery systems for a wide range of applications.
