SKU:
EX 85001000
1-2 weeks delivery time
Our managers will contact you and clarify the terms of the order
The Mastervolt IVET 10 kW Isolation Transformer (Part No. 85001000) ensures safe electrical separation between shore and onboard systems by providing galvanic isolation. Built with high-efficiency E-core technology, this heavy-duty, multi-voltage transformer supports 120/220/240 V AC inputs/outputs and protects against corrosion caused by stray currents. With natural convection cooling and over 93% efficiency, it is ideal for marine and industrial power systems. For optimal performance, Mastervolt recommends pairing with an optional Soft Start module to suppress inrush currents.
- Description
- Ask a Question
-

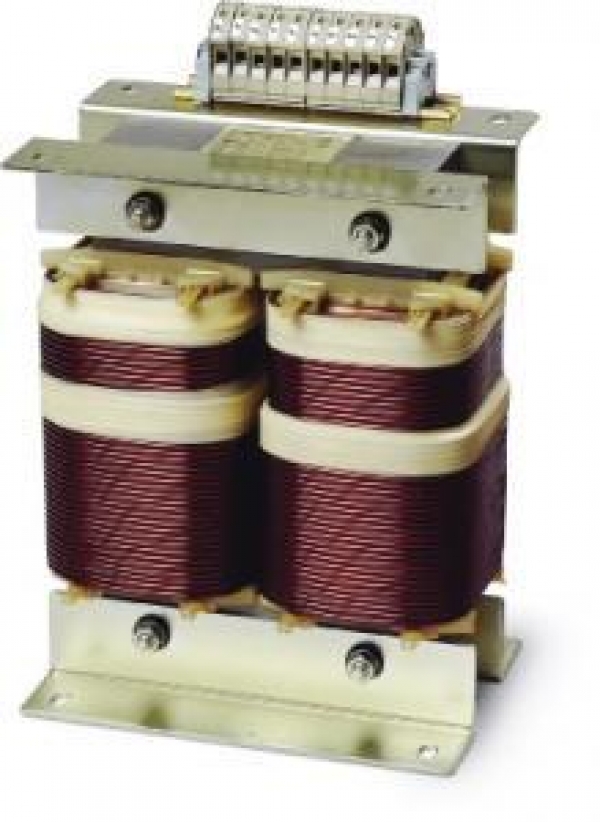

Mastervolt 85001000 – IVET 10 kW Isolation Transformer
The Mastervolt IVET 10 kW (85001000) is a high-performance open-frame isolation transformer that provides galvanic separation between shore power and onboard electrical systems. Designed for marine and industrial environments, it ensures safety, prevents corrosion, and supports multi-tap operation for flexible global voltage compatibility.
Key Features:
- Galvanic isolation to prevent electrolysis and stray current corrosion
- Supports 120/220/240 V ±5% input and output
- Power rating: 10 000 W
- Efficient E-core technology with >93% energy efficiency
- Natural convection cooling—no fan required
- Optional Soft Start module suppresses inrush current at startup
- Open-frame design (IP00) for self-installation in ventilated enclosures
General Specifications:
Part Number 85001000 Power Output 10 000 W Input Voltage Range 110/220/240 V AC Output Voltage Range 120/220/240 V AC (±5%) Input Frequency 45–65 Hz Output Frequency 45–65 Hz Nominal Input Current (at 230 V) 44 A Efficiency > 93% Dimensions (H × W × D) 430 × 280 × 240 mm / 16.9 × 11.0 × 9.4 inch Weight 75 kg / 165.3 lb Compliance CE, ABYC
Technical Specifications:
Technology E-core Protection Degree IP00 (no casing) No-load Power Consumption < 10 W Earth Leakage Protection Not included Cooling Natural convection Operating Temperature Range 0 °C to 40 °C (derating required > 40 °C) Operating Humidity Max. 95% Soft Start Support Optional (recommended) MasterBus Compatible No
Installation Notes:
- Designed for dry, ventilated locations—must be mounted securely
- Use with optional Soft Start (sold separately) to avoid shore power fuse tripping
- Recommended for large yachts, commercial vessels, and land-based systems
-
