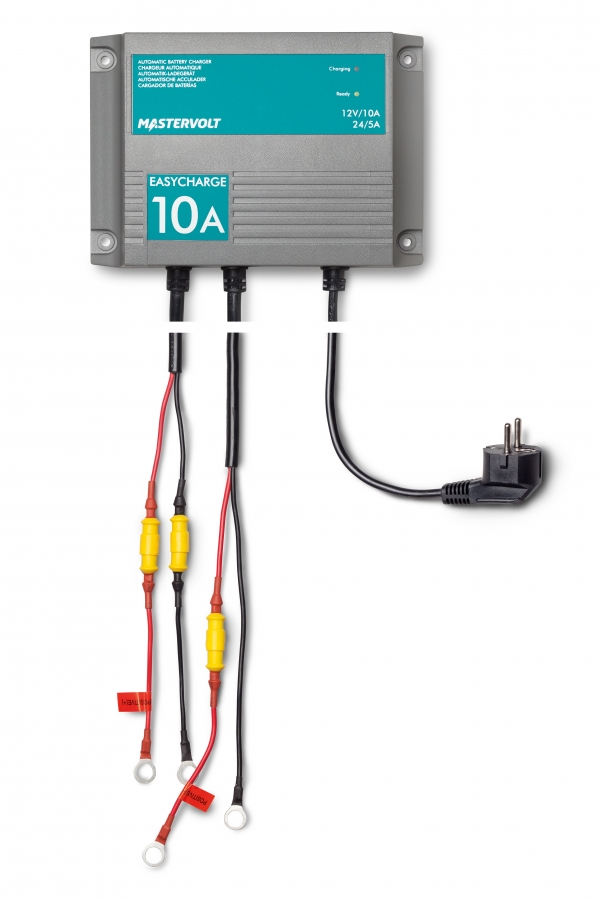

Mastervolt 43321002 - EasyCharge Battery Charger 10A-2 - UK plug

Mastervolt 43321002 - EasyCharge 10A Marine Battery Charger

Key Features:

• Waterproof fixed-mount battery charger with dual-bank capability, ideal for marine and harsh environments
• Sealed in an epoxy-filled, non-corrosive enclosure, meeting IP68 waterproof standards for complete protection
• Utilizes Mastervolt’s 3-step+ IUoUo charging technology for efficient, full charging of Gel, AGM, and flooded batteries
• Sense-Send™ technology prioritizes the battery that requires the most charge, optimizing power distribution
• Supports 12V or 24V configurations with isolated outputs, allowing series or parallel connections for varied applications
• Universal input (120-230 V, 50/60 Hz) enables worldwide compatibility, suitable for any location

Specifications:

General Specifications

• Total Charge Current: 10 A at 12 V / 5 A at 24 V
• Recommended Battery Capacity: Up to 120 Ah (based on 50% discharged battery)
• Nominal Input Voltage: 120/230 V (90-265 V), 50/60 Hz
• AC Connection: 1.2 m (4 ft) cable with UK plug
• DC Connection: Ring terminals for secure connections
• Galvanic Isolation: Yes
• Dimensions (HxWxD): 127 x 178 x 51 mm (5.0 x 7.0 x 2.0 inches)
• Weight: 2.8 kg (6.2 lb)
• Compliance: CE, ABYC, with optional UK or Euro plug configurations

Technical Specifications

• Charge Characteristic: IUoUo, automatic 3-step+ for Gel, AGM, and flooded batteries
• Operating Temperature Range: -20 °C to 50 °C (-4 °F to 122 °F)
• Protection Degree: IP68, fully waterproof and dustproof
• Protections: Spark-free, short circuit, reverse polarity, over-voltage, current limited, over-temperature
• MasterBus Compatible: No

Compatibility and Application:

• Designed for marine, RV, and off-grid environments requiring robust, waterproof charging solutions
• Suitable for dual battery banks with isolated outputs, supporting flexible setup for 12V or 24V systems
• Compatible with Gel, AGM, and flooded batteries, ideal for small to medium battery capacities up to 120 Ah

Benefits:

• Ensures reliable charging in harsh conditions, with epoxy-sealed construction for IP68 waterproof protection
• Sense-Send™ technology intelligently distributes charge, extending battery life and optimizing power efficiency
• Global compatibility with a universal input range, allowing charging in any region
• Fully tested for salt, shock, and vibration resistance, making it suitable for extreme environments
• Compact design with straightforward installation, providing versatile mounting options
