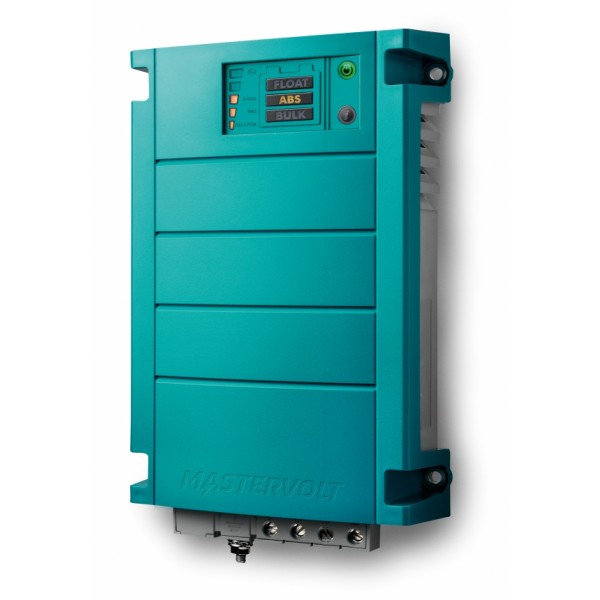

Mastervolt 44010252 - ChargeMaster Battery Charger 12/25-3 incl. Wago Connector

Mastervolt 44010252 - ChargeMaster 12/25-3

Key Features:

• Fast and complete charging with Mastervolt's innovative 3-Step+ charging technology, suitable for all battery types including Lithium Ion.
• Ability to charge multiple battery banks simultaneously, with a total charge current of 25A per outlet.
• Auto-ranging feature for global compatibility (90-265 V AC, 50/60 Hz) ensuring reliable operation regardless of available mains voltage.
• Clear LED display showing essential charge information such as voltage, current, phase, and battery condition in Ah capacity percentage.
• Galvanic isolation for safe and efficient charging, with the ability to operate without a battery connected to power systems like lights and fridges.
• Compact design with easy installation using solid metal-to-metal connectors to prevent corrosion and overheating.
• Temperature compensation and automatic DC voltage compensation ensure optimal performance and protection against damage.
• Complies with CE, ABYC A-31, SAE J1171/ISO 8846 standards for reliable use in various conditions.
• MasterBus compatibility for integration with other Mastervolt products, allowing for central, local, or remote monitoring and control of the system.

Specifications:

• Nominal Output Voltage: 12 V
• Total Charge Current: 25 A at 13.25 V
• Number of Battery Outlets: 3
• Battery Bank Size: 50-250 Ah
• Nominal Input Voltage: 120/230 V (90-265 V), 50/60 Hz
• AC Connection: 2-meter AC cable
• Power Supply Mode: Yes
• Galvanic Isolation: Yes
• Display/Read-Out: LED display
• Dimensions (HxWxD): 234 x 132 x 60 mm (9.2 x 5.2 x 2.4 inches)
• Weight: 1.8 kg (4.0 lbs)
• Compliance: CE, ABYC A-31, SAE J1171/ISO 8846 ignition protected, RRR, RMRS

Technical Specifications:

• Charge Characteristic: IUoUo, automatic 3-step+ for Gel/AGM/wet/Lithium Ion
• Charge Voltage (Bulk): 14.4 V
• Charge Voltage (Absorption): 14.25 V
• Absorption Time: 4 hours
• Charge Voltage (Float, Wet Batteries): 13.25 V
• Charge Voltage (Float, Gel/AGM Batteries): 13.8 V
• Temperature Compensation: Yes
• DC Voltage Compensation: Automatic
• Power Consumption (DC Side): < 2 mA
• Full Load Consumption (230 V AC): 450 W
• Current Control Function: No
• Power Factor Control: >= 0.98
• Temperature Range (Ambient Temp.): -25°C to 60°C, derating < 0°C and > 40°C (-13 to 140 °F)
• Cooling: Vario fan
• Protection Degree: IP23
• Protections: Over temperature, overload, short circuit, high/low battery voltage
• MasterBus Compatible: Yes

Benefits:

• Provides fast and efficient charging with 3-Step+ technology, suitable for various battery types including Lithium Ion.
• Charges up to three separate battery banks simultaneously, making it ideal for large off-grid systems.
• Global compatibility with auto-ranging input voltage (90-265 V), making it suitable for use anywhere in the world.
• Clear LED display allows for easy monitoring of charging status, battery voltage, and load levels.
• Built-in temperature and voltage compensation ensures optimal performance and protection for your batteries.
• Easy installation and maintenance-free operation with robust connections designed for longevity.
• Seamlessly integrates with other Mastervolt products via MasterBus, providing centralized control and monitoring options.
• Designed to meet CE, ABYC A-31, SAE J1171/ISO 8846 standards, ensuring reliability and safety in harsh environments.
