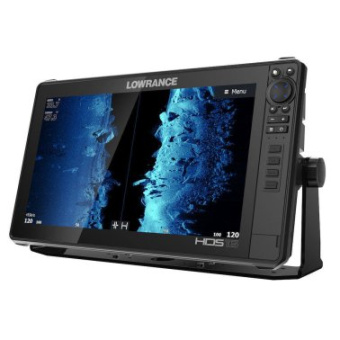

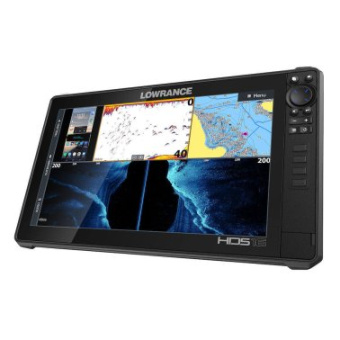

Lowrance HDS-16 Live with Active Imaging 3-1 Transducer

Lowrance HDS-16 Live with Active Imaging™ 3-in-1 Transducer

The Lowrance HDS-16 Live is a state-of-the-art marine display and fishfinder designed to offer unmatched performance, connectivity, and imaging technology. Featuring a 16-inch SolarMAX™ HD touchscreen, this unit provides crisp Full HD visuals, intuitive multi-touch controls, and advanced sonar imaging with Active Imaging™ 3-in-1 sonar.

Display Features:

• Screen Size: 16 inches
• Backlight: Pure White LED
• Resolution: 1920x1080 (Full HD)
• Brightness: Over 1200 nits for superior visibility in bright sunlight
• Technology: SolarMAX™ HD IPS, Multi-touch, P-CAP
• Viewing Angles: 80° (top/bottom), 80° (left/right)

Sonar Capabilities:

• Active Imaging™ 3-in-1: Provides CHIRP sonar, SideScan, and DownScan imaging for precise underwater detection.
• High-Resolution Target Separation: Ensures clear and detailed fish and structure identification.

Connectivity Options:

• NMEA 0183: 1x RS422 port (baud rates: 1200-115200)
• NMEA 2000: 1x Micro-C port
• Ethernet: 2 x 100Mbit ports (supports up to 6 MFDs on a network)
• Wi-Fi: Internal 802.11b/g/n; compatible with WiFi-1 Module
• Video Input: HDMI, Composite video RCA (via optional adapter)

Electrical Specifications:

• Power Consumption (max): 4.9A @ 13VDC (full backlight, sonar on)
• Power Consumption (min/typical): 3.0A @ 13VDC (full backlight, sonar on)
• Recommended Fuse Rating: 6.5A
• Supply Voltage: 12V DC (10.8-17VDC)
• Humidity Resistance: 60°C, 95% relative humidity (RH) for 18 hours

Physical Specifications:

• Weight: 7.3 kg
• Dimensions: 33.97 × 53.66 × 7.3 cm
• Component: Head/Display
• Family: Lowrance HDS LIVE

The Lowrance HDS-16 Live is a cutting-edge marine display built for high-performance fishing, navigation, and connectivity. Whether you're navigating open waters or tracking fish in real-time, this unit ensures unparalleled precision and clarity.

What’s in the Box:

• Lowrance HDS-16 Live Display Unit
• Active Imaging™ 3-in-1 Transducer
• Power Cable
• Mounting Hardware
• Documentation

Upgrade your marine electronics with the Lowrance HDS-16 Live – a premium display with advanced sonar technology and seamless networking.
