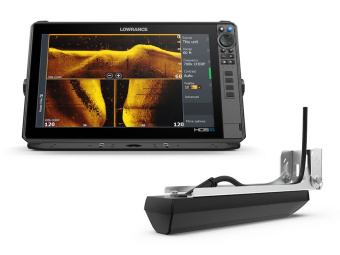

Lowrance HDS PRO 16 with Active Imaging™ HD 3-in-1 Transducer

Lowrance HDS-16 PRO with Active Imaging™ HD 3-in-1 Transducer

The Lowrance HDS-16 PRO is a high-performance marine display and fishfinder designed for professional anglers and boaters. Featuring Active Imaging™ HD 3-in-1 sonar, this unit provides exceptional underwater clarity with CHIRP sonar, SideScan, and DownScan imaging for superior target detection.

Display Features:

• Screen Size: 16 inches
• Backlight: Pure White LED
• Resolution: 1920x1080 (Full HD)
• Brightness: Over 1200 nits for superior visibility in bright sunlight
• Viewing Angles: 80° (top/bottom), 80° (left/right)

Sonar Capabilities:

• Active Imaging™ HD 3-in-1: Provides CHIRP sonar, SideScan, and DownScan imaging for detailed underwater scanning.
• Advanced Target Separation: Ensures clear and precise fish and structure identification.

Connectivity Options:

• Bluetooth: Integrated Bluetooth 4.0 with Bluetooth Classic support
• Ethernet: 2 x 100Mbit ports (supports up to 6 MFDs on a network)
• Wi-Fi: Internal 802.11b/g/n; compatible with WiFi-1 Module

Electrical Specifications:

• Power Consumption (max): 4.1A @ 13VDC (full backlight, sonar on)
• Power Consumption (min/typical): 3.0A @ 13VDC (full backlight, sonar on)
• Recommended Fuse Rating: 5A
• Supply Voltage: 12V DC (10.8-17VDC)

The Lowrance HDS-16 PRO is a powerful marine display built for precision, clarity, and seamless integration with advanced marine networks. Whether you're navigating coastal waters or deep-sea fishing, this unit provides unparalleled performance and reliability.

What’s in the Box:

• Lowrance HDS-16 PRO Display Unit
• Active Imaging™ HD 3-in-1 Transducer
• Power Cable
• Mounting Hardware
• Documentation

Enhance your fishing and navigation with the Lowrance HDS-16 PRO – a premium marine display featuring cutting-edge sonar technology and seamless networking.
