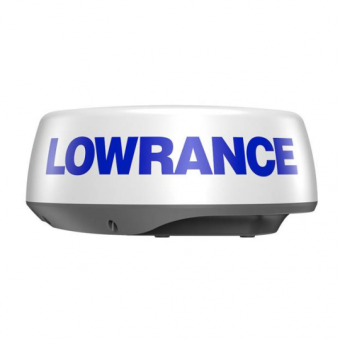

Lowrance HALO20+ Radar 20 Inch 36 NM

Lowrance HALO20+ Radar – 20 Inch, 36 NM Range

The Lowrance HALO20+ Radar is a high-performance marine radar system designed to provide crisp, accurate target detection in all marine environments. With a 36 NM range, Pulse Compression technology, and dual-range capability, it offers instant target acquisition and real-time tracking.

Key Features:

• Range: 36 NM
• Compact Dome Antenna: Provides high-quality detection with a minimal footprint.
• Pulse Compression Technology: Enhances target separation and detection clarity.
• InstantOn™: Rapid startup, even from standby mode.
• Multiple Operational Modes: Harbour, Offshore, Weather, Bird, Dual Range, North Up, Course Up, Relative Motion, True Motion.
• Dual Range Mode: Monitor distant storm cells and close-range collision risks simultaneously.
• VelocityTrack™ Technology: Provides instant feedback on target movement, helping to identify potential threats.
• Automated Obstacle Detection: Tracks objects within radar range without manual selection.
• Full 360-Degree Scanning: Completes a full sweep every second at 60 RPM.

Radar Specifications:

• Beam Width: 4.9° H nominal (-3dB) / 2.5° high-resolution target separation x 25° V
• Minimum Range: 50 meters / 200 feet / 50 yards
• Wind Resistance: Handles wind speeds up to 100 knots (51 m/s)
• Rotation Speed: Up to 60 RPM (based on selected range)

Electrical & Environmental:

• Power Consumption: 29W max, 20W typical
• Supply Voltage: 10.5 - 31.2 VDC (12/24V systems)
• Recommended Fuse Rating: 5A
• Waterproof Rating: IPX6
• Operating Temperature: -25° to +55°C (-13° to +130°F)
• Humidity Resistance: Up to 95% RH at 35°C (95°F)

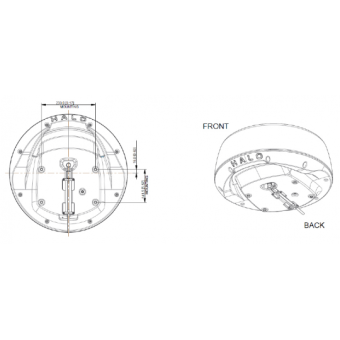

Physical Dimensions:

• Diameter: 510mm (20 inches)
• Height: 223mm (8.8 inches)
• Weight: 5.9 kg (13 lbs) without cable

Compliance & Certifications:

• FCC Part 47 CFR 80 and 90
• RED Directive 99/5/EC
• CE, EN302-248 V2.1.1
• Industry Canada RSS238
• RCM (C-Tick)
• IEC60945 Sections 9.2, 9.3, 10.3-10.9, 11.2

Benefits:

• Enhanced safety and collision avoidance through real-time monitoring.
• Advanced target separation for clearer distinction between nearby vessels and obstacles.
• Color-coded alerts to indicate potential threats.
• Designed for offshore, inshore, and harbor navigation, ensuring superior tracking in all conditions.

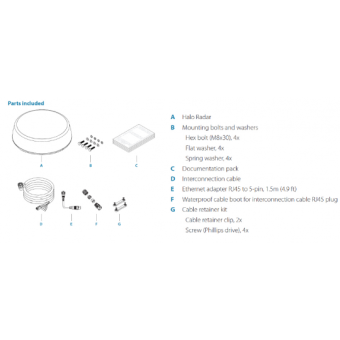

What’s in the Box:

• Lowrance HALO20+ Radar
• Mounting Hardware
• Power & Ethernet Cables
• Installation Guide

Upgrade your vessel’s navigation system with the Lowrance HALO20+ Radar – a compact, high-performance radar solution for modern marine explorers.
