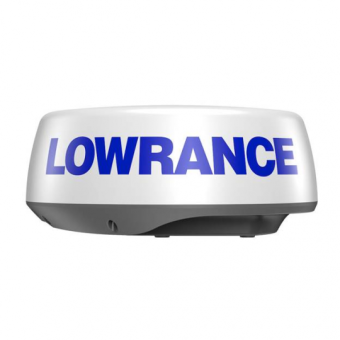

Lowrance HALO20 Radar 20 Inch 24 NM

Lowrance HALO20 Radar – 20 Inch, 24 NM Range

The Lowrance HALO20 Radar is a compact and energy-efficient marine radar system designed to enhance safety and navigation. Featuring pulse compression technology, instant-on startup, and multi-mode operation, this radar provides detailed target detection and real-time situational awareness.

Key Features:

• Range: 24 NM
• Pulse Compression Technology: Enhances target separation and clarity.
• InstantOn™: Quick startup, even from standby mode.
• Multiple Operational Modes: Harbour, Offshore, Weather, North Up, Course Up, Relative Motion, True Motion.
• Dual Range Mode: Monitor two different distances simultaneously.
• VelocityTrack™ Technology: Provides instant feedback on target movement.
• Automatic Target Tracking: Identifies obstacles without manual selection.
• Full 360-Degree Scanning: Completes a full scan every second at 60 RPM.

Radar Specifications:

• Beam Width: 4.9° (horizontal), 25° (vertical)
• Minimum Range: 50 meters / 200 feet / 50 yards
• Wind Resistance: Up to 100 knots (51 m/s)
• Rotation Speed: 24 RPM

Electrical & Environmental:

• Power Consumption: 20W max, 18W typical
• Supply Voltage: 10.5 - 31.2 VDC (12/24V systems)
• Recommended Fuse Rating: 5A
• Waterproof Rating: IPX6
• Operating Temperature: -25° to +55°C (-13° to +130°F)

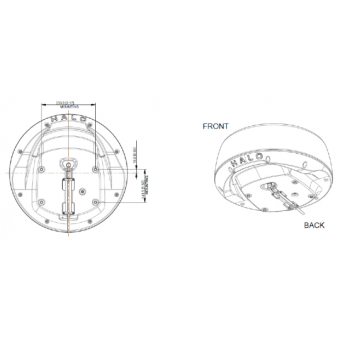

Physical Dimensions:

• Diameter: 510mm (20 inches)
• Height: 223mm (8.8 inches)
• Weight: 5.9 kg (13 lbs) without cable

Compliance & Certifications:

• FCC Part 47 CFR 80 and 90
• RED Directive 99/5/EC
• CE, EN302-248 V2.1.1
• Industry Canada RSS238
• RCM (C-Tick)
• IEC60945 Sections 9.2, 9.3, 10.3-10.9, 11.2

Benefits:

• Enhanced safety and collision avoidance with real-time monitoring.
• Advanced target separation for better clarity of nearby vessels and obstacles.
• Color-coded alerts for potential risks and dangers.
• Optimized for offshore and coastal use, ensuring reliable navigation in all weather conditions.

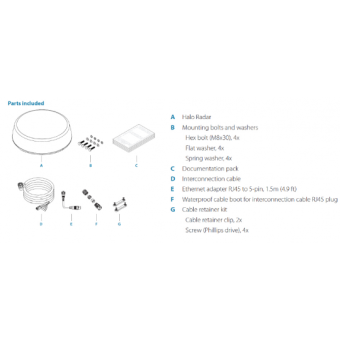

What’s in the Box:

• Lowrance HALO20 Radar
• Mounting Hardware
• Power & Ethernet Cables
• Installation Guide

Upgrade your marine navigation with the Lowrance HALO20 Radar – an advanced, compact radar system designed for safety, clarity, and precision on the water.
