SKU:
TN 00447486
€ 1.519,50
1-2 weeks delivery time
-
+
The Humminbird 710302-1 SSTH 14 HW MSI+ T is a stainless steel thru-hull transducer built for larger boats, supporting MEGA Side Imaging+, Down Imaging+, Dual Spectrum CHIRP sonar, and a built-in temperature sensor, compatible with XPLORE, APEX, SOLIX G2 and G3 models.
- Description
- Ask a Question
-

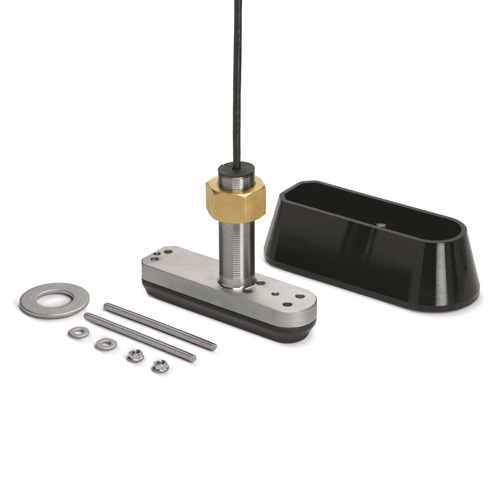

Humminbird 710302-1 - SSTH 14 HW MSI+ T - Solix Mega SI+, DI+, DS CHIRP w/ Temp Thru-Hull Transducer
Engineered for larger boats, this stainless steel thru-hull transducer supports MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP sonar, and includes a built-in temperature sensor for advanced underwater scanning.
- Compatible with: All XPLORE, APEX, SOLIX G2 and G3 models
- Can connect to HELIX 8-15 MSI+ G3N and G4N models using MKR MI-1 adapter cable (#1852088)
- Cable length: 20 feet (6 meters)
- Sonar types: Side Imaging (800kHz/455kHz), Down Imaging (MEGA DI+/800kHz/455kHz), Dual Spectrum CHIRP 2D sonar
- CHIRP frequency range: 150-220 kHz
- MEGA Side Imaging max side-to-side range:
- 455kHz: 440-500 kHz up to 800 ft (244 m)
- 800kHz: 790-850 kHz up to 250 ft (76 m)
- MEGA SI+: 1075-1150 kHz up to 400 ft (122 m)
- MEGA Down Imaging max depth:
- 455kHz: 440-500 kHz up to 400 ft (122 m)
- 800kHz: 790-850 kHz up to 250 ft (76 m)
- MEGA DI+: 1075-1150 kHz up to 200 ft (61 m)
- Dual Spectrum CHIRP frequencies: Full (150-220 kHz), Narrow (180-240 kHz), Wide (140-200 kHz)
- Dual Spectrum CHIRP max depth: 1200 ft (365 m)
- Physical dimensions: 8.4" length x 2.3" width x 1.65" depth below hull
- Shaft diameter: 1.5"; Shaft length: 5" with included fairing block
- Order number: 00447486
- Supplier code: 710302-1
- Barcode: 082324054815
- Model: SSTH 14 HW MSI+ T
- Frequency bands: Multiple CHIRP imaging and sonar frequencies as listed
- Sonar depth range: 365 meters
-
