SKU:
TN 00447452
€ 406,77
1-2 weeks delivery time
-
+
The Humminbird 710297-1 Transom Transducer XNT 9 HW MSI 150 T offers MEGA Down Imaging, Side Imaging, and Dual Spectrum CHIRP 2D sonar for high-definition underwater views, with a built-in temperature sensor and a 20-foot cable. It's compatible with HELIX 7 CHIRP MEGA SI GPS G3/G3N and G4/G4N models, with sonar frequencies reaching up to 1,200 ft in depth and Side Imaging ranges of up to 800 ft.
- Description
- Ask a Question
-

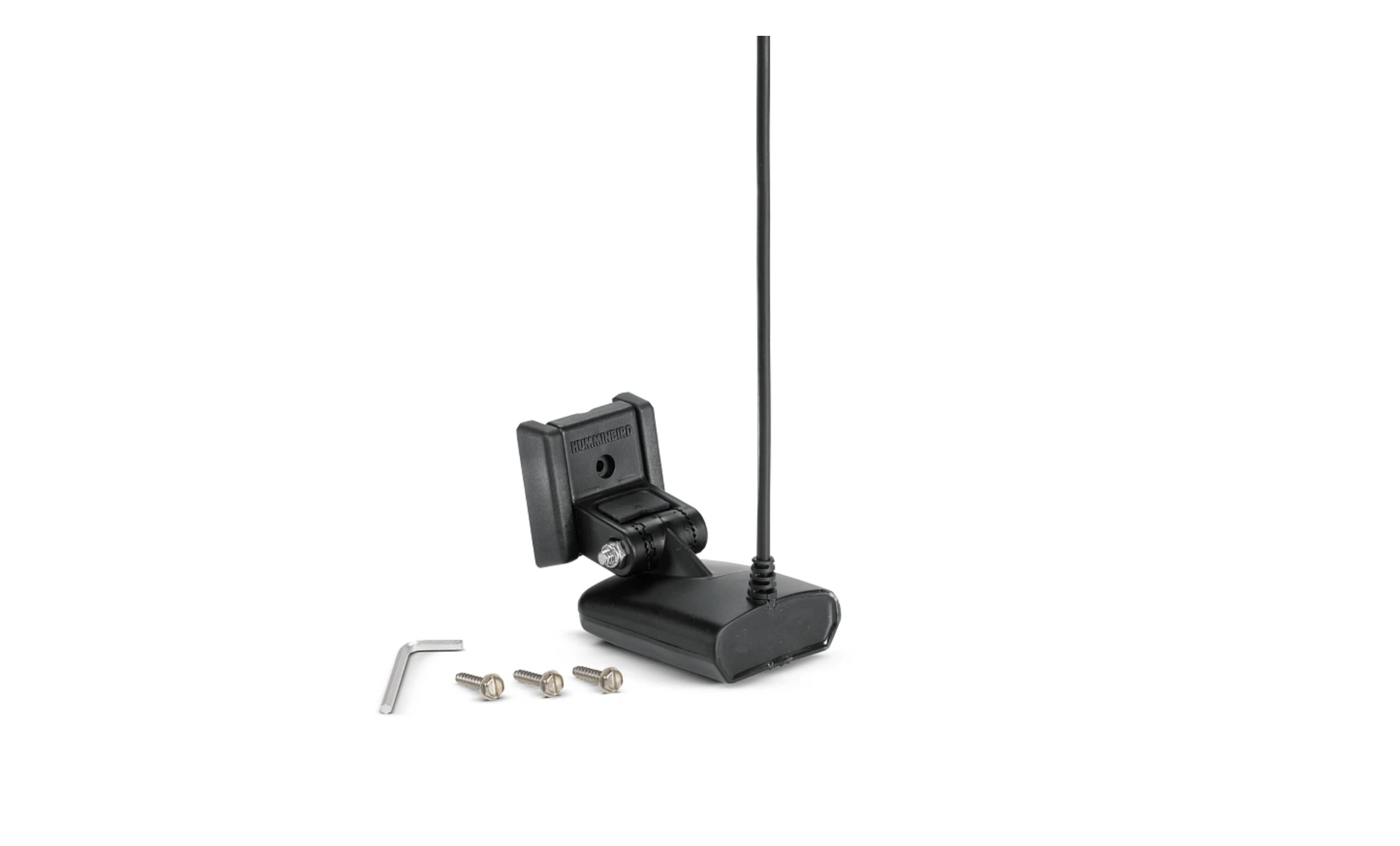

Humminbird 710297-1 - Transom Transducer XNT 9 HW MSI 150 T
This transom mount transducer offers MEGA Down Imaging and Side Imaging along with Dual Spectrum CHIRP 2D sonar for comprehensive underwater detection. It includes temperature sensing and supports high-resolution imaging frequencies.
- Features MEGA Down Imaging at 455 kHz and 1.2 MHz plus Dual Spectrum CHIRP 2D sonar (150-220 kHz)
- Includes built-in temperature sensor
- Compatible with HELIX 7 CHIRP MEGA SI GPS G3 and G3N models
- Also compatible with HELIX 7 CHIRP MSI GPS G3, G3N, G4, G4N
- 20-foot (6 m) cable length
- Dual Spectrum CHIRP frequencies: Full 150-220 kHz, Narrow 180-240 kHz, Wide 140-200 kHz
- Maximum sonar depth: Dual Spectrum CHIRP up to 1200 ft (365 m)
- Side Imaging frequencies and max range (side-to-side): 455 kHz (440-500 kHz) up to 800 ft (146 m), MEGA SI (1075-1150 kHz) up to 250 ft (76 m)
- Down Imaging frequencies and max depth: 455 kHz (440-500 kHz) up to 125 ft (38 m), MEGA DI (1075-1150 kHz) up to 75 ft (23 m)
- General info: Order number 00447452, Supplier code 710297-1, Barcode 082324053498
- Model: XNT 9 HW MSI 150 T
- Cable length: 6 meters
- Sonar depth range: 365 meters
-
