SKU:
TN 00447456
€ 790,05
1-2 weeks delivery time
-
+
The Humminbird 710292-1 Transom Transducer XM 14 HW MSI T combines MEGA Side Imaging+ and MEGA Down Imaging+ technologies with Dual Spectrum CHIRP 2D sonar, including a built-in temperature sensor. Compatible with XPLORE, APEX, and SOLIX CHIRP MEGA SI+ G2 and G3 models, it offers extensive frequency support and a 6-meter cable with a sonar depth range of 365 meters.
- Description
- Ask a Question
-

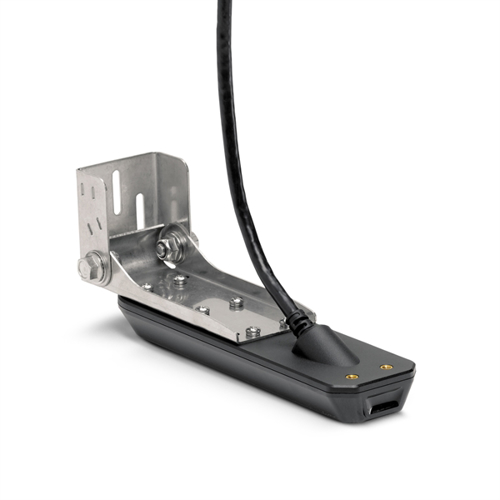

Humminbird 710292-1 - Transom Transducer XM 14 HW MSI T - MSI+
This transom mount transducer combines MEGA Side Imaging+ and MEGA Down Imaging+ technologies with Dual Spectrum CHIRP 2D sonar for detailed underwater views. It also includes a built-in temperature sensor and supports a wide range of Humminbird models.
- Mount type: Transom Mount
- Imaging technology: MEGA Side Imaging+ and MEGA Down Imaging+ at 800kHz/455kHz and 1.2 MHz
- Sonar type: Dual Spectrum CHIRP 2D Sonar with CHIRP range 150-220 kHz
- Includes built-in temperature sensor
- Compatible with all XPLORE, APEX, and SOLIX CHIRP MEGA SI+ G2 and G3 models

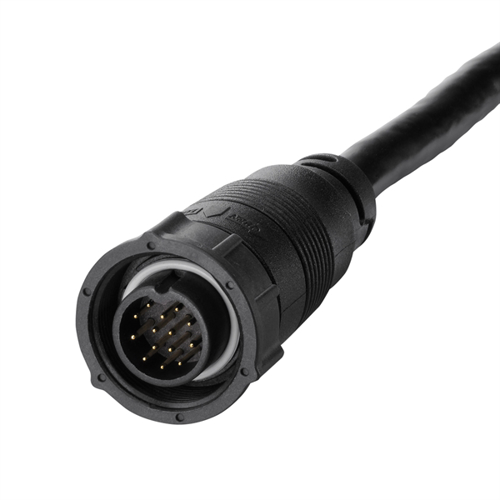

- Cable length: 20 feet (6 meters)
- Dual Spectrum CHIRP Frequencies:
- Full: 150-220 kHz
- Narrow: 180-240 kHz
- Wide: 140-200 kHz
- Maximum sonar depth: 1200 ft (365 m)
- MEGA Side Imaging Frequencies and Max Range (side-to-side):
- 455 kHz: 440-500 kHz – 800 ft (244 m)
- 800 kHz: 790-850 kHz – 250 ft (76 m)
- MEGA SI+: 1075-1150 kHz – 400 ft (122 m)
- MEGA Down Imaging Frequencies and Max Depth:
- 455 kHz: 440-500 kHz – 400 ft (122 m)
- 800 kHz: 790-850 kHz – 250 ft (76 m)
- MEGA DI+: 1075-1150 kHz – 200 ft (61 m)
- General product info:
- Order number: 00447456
- Supplier code: 710292-1
- Barcode: 082324053252
- Model: XM 14 HW MSI T
- Sonar depth range: 365 m
-
