The Humminbird 710290-1 XM 14 HW MDI T is a transom mount transducer offering MEGA Down Imaging+ and Dual Spectrum CHIRP 2D sonar with multiple frequency ranges for superior imaging. It includes a built-in temperature sensor, supports XPLORE, APEX, and SOLIX models, and comes with a 6-meter cable and a sonar depth range of 365 meters.
- Description
- Ask a Question
-

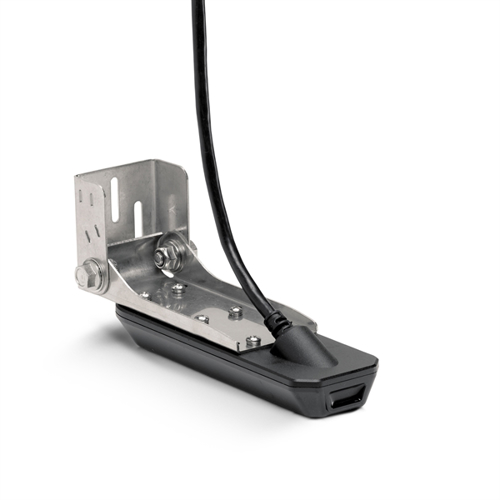

Humminbird 710290-1 - XM 14 HW MDI T - Solix Mega DI+, Dual Spectrum CHIRP with Temperature Transom Transducer
This advanced transducer is designed for transom mounting and offers MEGA Down Imaging+ combined with Dual Spectrum CHIRP 2D sonar capabilities. It features multiple frequency ranges for superior underwater imaging and includes a built-in temperature sensor for added functionality.
- Mount type: Transom Mount
- Imaging technology: MEGA Down Imaging+ at 800kHz/455kHz and 1.2 MHz
- Sonar type: Dual Spectrum CHIRP 2D Sonar with CHIRP range 150-220 kHz
- Built-in temperature sensor included
- Compatible with all XPLORE, APEX, and SOLIX 10, 12, 15 models, up to the transducer's maximum capability
- Cable length: 20 feet (6 meters)
- Dual Spectrum CHIRP Frequencies:
- Full: 150-220 kHz
- Narrow: 180-240 kHz
- Wide: 140-200 kHz
- Maximum sonar depth: 1200 ft (365 m)
- MEGA Down Imaging Frequencies and Max Depth:
- 455 kHz: 440-500 kHz – 400 ft (122 m)
- 800 kHz: 790-850 kHz – 125 ft (38 m)
- MEGA DI+: 1075-1150 kHz – 200 ft (61 m)
- General product info:
- Order number: 00447455
- Supplier code: 710290-1
- Barcode: 082324053191
- Model: XM 14 HW MDI T
- Sonar depth range: 365 m
-
