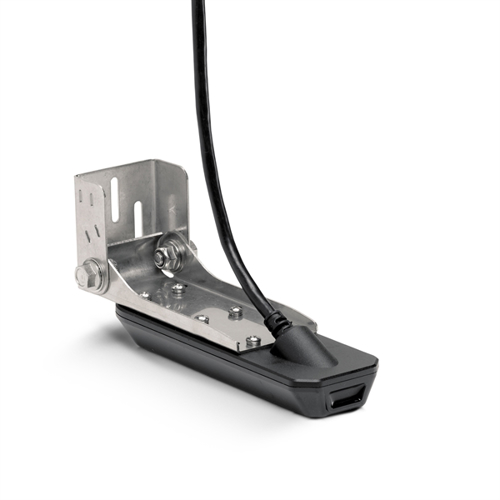

Humminbird 710282-1 - XM 9 HW MSI T - Helix Mega SI+, DI+, Dual Spectrum CHIRP w/ Temp Transom Transducer

SKU: TN 00447453

€ 790,05

1-2 weeks delivery time

- +

Add to cart

The Humminbird 710282-1 XM 9 HW MSI T combines MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar technologies with temperature sensing. Designed for HELIX models, it supports various frequency ranges, includes a 6-meter cable, and provides a sonar depth range of 365 meters.

Description
Ask a Question

Humminbird 710282-1 - XM 9 HW MSI T - Helix Mega SI+, DI+, Dual Spectrum CHIRP with Temperature Transom Transducer

This transom mount transducer combines MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to deliver extensive side-to-side and down imaging, including temperature sensing. It enhances the capabilities of compatible HELIX models.
- Mount type: Transom Mount
- Imaging and Sonar: MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP 2D Sonar at 800kHz/455 kHz and 1.2 MHz, with CHIRP frequency range 150-220 kHz
- Built-in temperature sensor included
- Compatibility: HELIX 12/10/9/8 CHIRP MEGA SI+ G3N and HELIX 15/12/10/9/8 CHIRP MEGA SI+ G4N
- Cable length: 20 feet (6 meters)
- Dual Spectrum CHIRP Frequencies: Full 150-220 kHz, Narrow 180-240 kHz, Wide 140-200 kHz
- Dual Spectrum CHIRP Maximum Depth: 1200 ft (365 m)
- MEGA Side Imaging+ Frequencies and Max Ranges (side-to-side):
  - 455 kHz: 440-500 kHz, max range 800 ft (244 m)
  - 800 kHz: 790-850 kHz, max range 250 ft (76 m)
  - MEGA SI+: 1075-1150 kHz, max range 400 ft (122 m)
- MEGA Down Imaging+ Frequencies and Max Depths:
  - 455 kHz: 440-500 kHz, max depth 400 ft (122 m)
  - 800 kHz: 790-850 kHz, max depth 125 ft (38 m)
  - MEGA DI+: 1075-1150 kHz, max depth 200 ft (61 m)
- General info:
  - Order number: 00447453
  - Supplier code: 710282-1
  - Barcode: 082324053269
  - Model: XM 9 HW MSI T
  - Sonar depth range: 365 m
