SKU:
TN 00447451
€ 493,31
1-2 weeks delivery time
-
+
The Humminbird 710280-1 XM 9 HW MDI T transom mount transducer features advanced MEGA Down Imaging+ and Dual Spectrum CHIRP sonar technology with built-in temperature sensing. It works with HELIX units, offers multiple CHIRP frequency ranges, and includes a 6-meter cable with a sonar depth range of 365 meters.
- Description
- Ask a Question
-

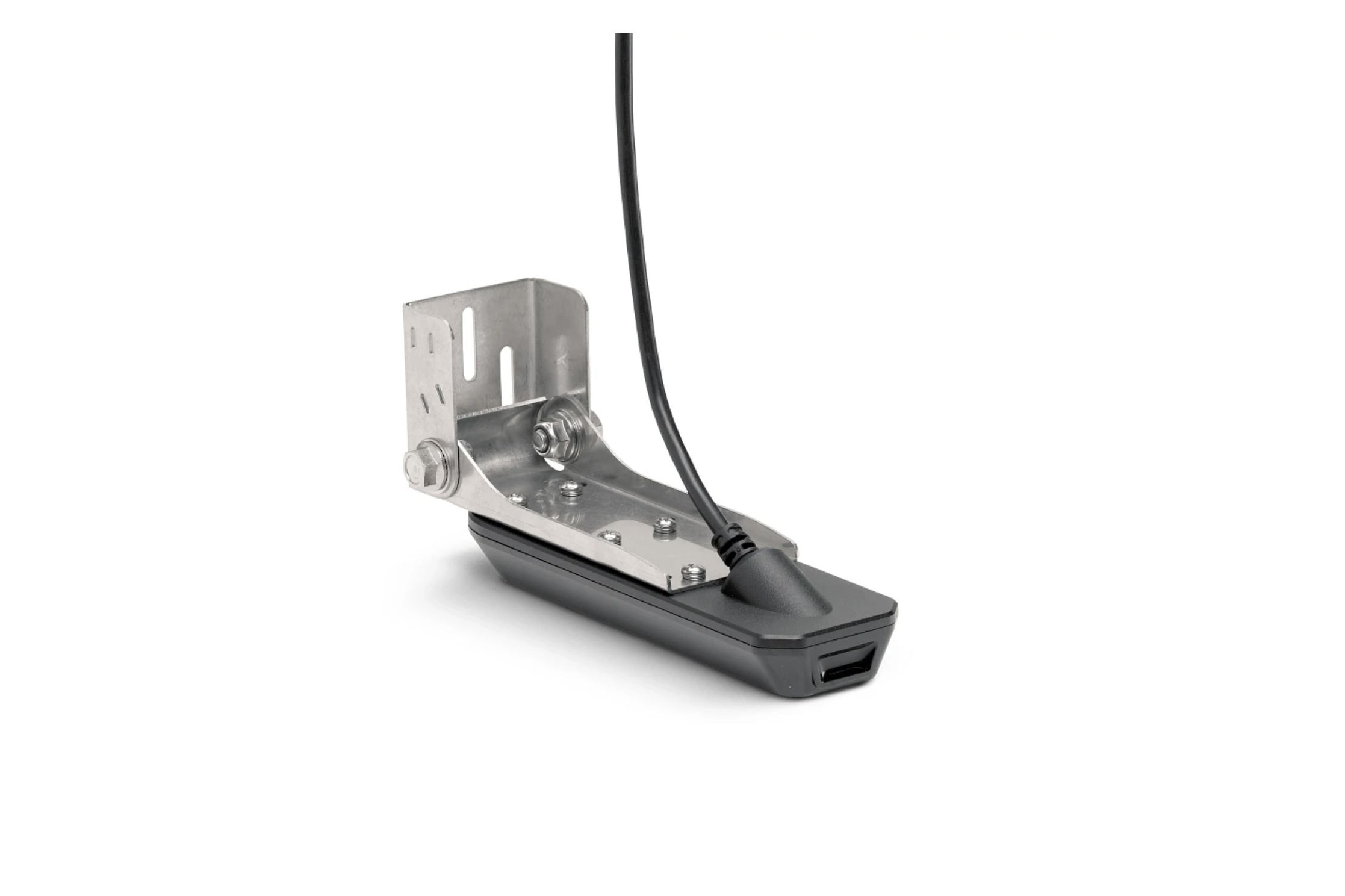

Humminbird 710280-1 - XM 9 HW MDI T - Helix Mega DI+, Dual Spectrum CHIRP with Temperature Transom Transducer
This transom mount transducer offers advanced MEGA Down Imaging+ and Dual Spectrum CHIRP sonar technology, providing detailed underwater visuals and temperature sensing. It is designed to maximize performance with compatible HELIX units.
- Mount type: Transom Mount
- Imaging and Sonar: MEGA Down Imaging+ at 800kHz/455 kHz and 1.2 MHz, Dual Spectrum CHIRP 2D Sonar with frequency range 150-220 kHz
- Built-in temperature sensor included
- Compatibility: Works with HELIX 12/10/9 CHIRP MEGA DI+ G3N, HELIX 15/12/10/9 CHIRP MEGA DI+ G4N for full unit capabilities, and HELIX 12/10/9/8 CHIRP MEGA SI+ G3N, HELIX 15/12/10/9/8 CHIRP MEGA SI+ G4N to transducer maximum potential
- Cable length: 20 feet (6 meters)
- Dual Spectrum CHIRP Frequencies: Full 150-220 kHz, Narrow 180-240 kHz, Wide 140-200 kHz
- Dual Spectrum CHIRP Maximum Depth: 1200 ft (365 m)
- Down Imaging Frequencies and Max Depths:
- 455 kHz: 440-500 kHz, max depth 400 ft (122 m)
- 800 kHz: 790-850 kHz, max depth 125 ft (38 m)
- MEGA DI+: 1075-1150 kHz, max depth 200 ft (61 m)
- General info:
- Order number: 00447451
- Supplier code: 710280-1
- Barcode: 082324053207
- Model: XM 9 HW MDI T
- Sonar depth range: 365 m
-
