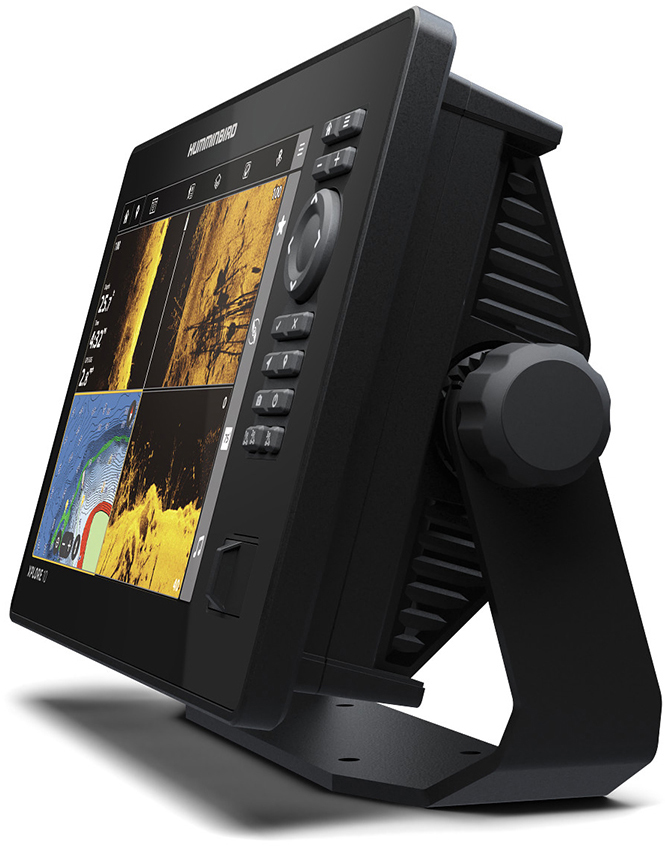

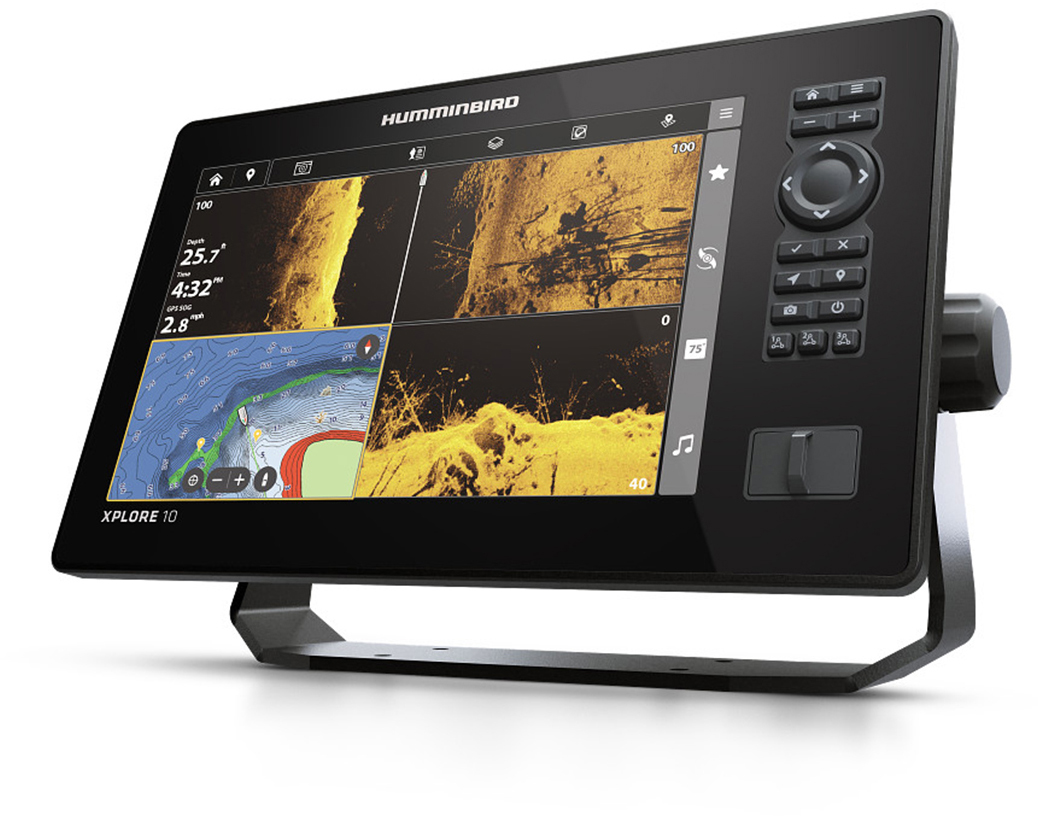

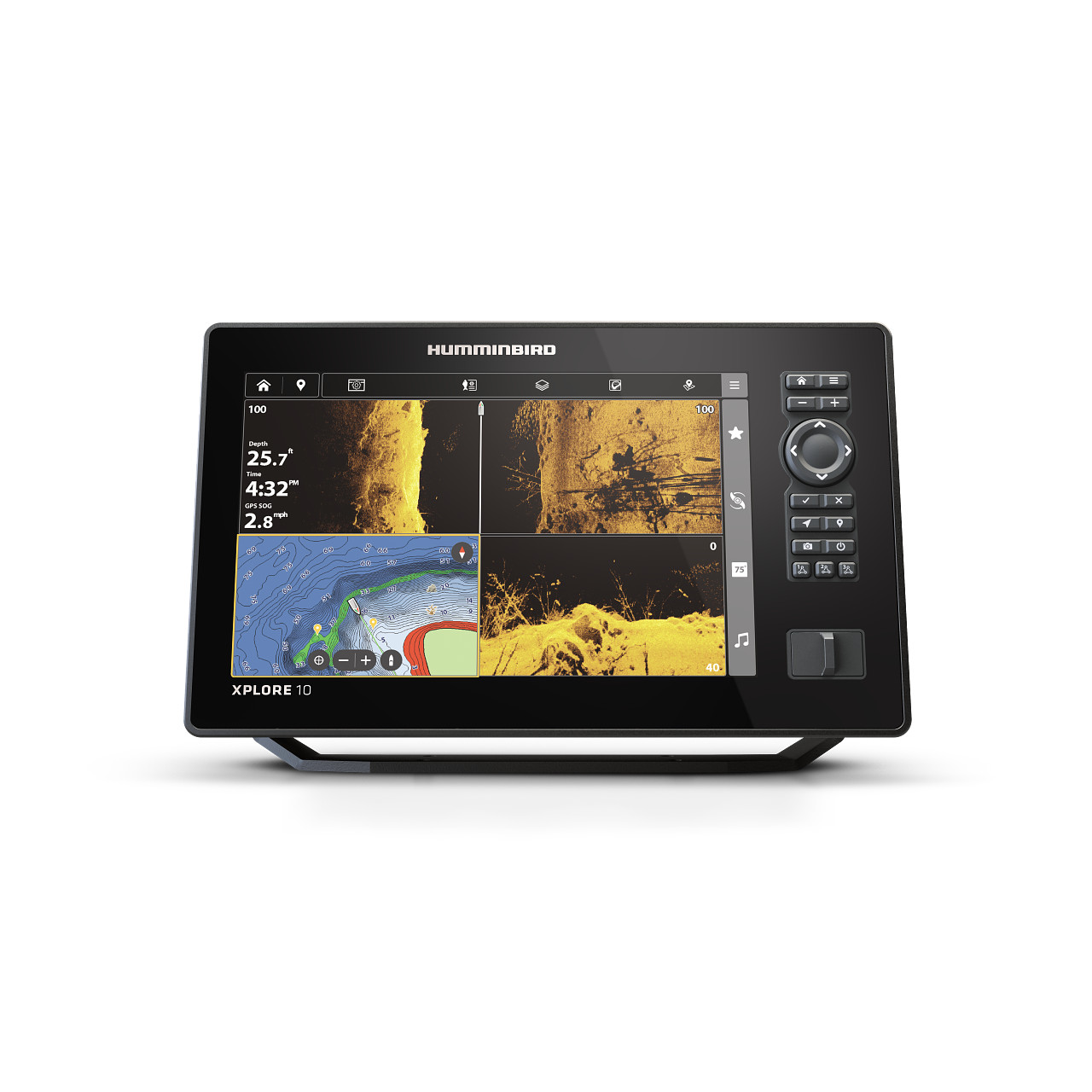

Humminbird 412020-1MCHO - Xplore 12 CHO

Humminbird 412020-1MCHO - Xplore 12 CHO

The XPLORE 12 CHO model is crafted for anglers who want a high-performance fish finder without the transducer included. It features the XPLORE Series’ lightning-fast processing and stunning HD quality that delivers razor-sharp sonar and map images, ensuring no detail is missed. The intuitive Full-HD Cross Touch® screen supports both touchscreen and key controls, while the edge-to-edge anti-glare display remains readable even when wearing polarized sunglasses.

Powered by a robust quad-core processor, the XPLORE 12 CHO allows faster access to advanced fishing tools and navigation technologies. It supports Wi-Fi, NMEA 2000®, Bluetooth, and Ethernet, making it fully compatible with the One-Boat Network™. The unit is designed to work seamlessly with systems like the Minn Kota bow engine, Talon and Raptor anchors, and offers the ability to synchronize up to 10,000 fishing spots through its waypoint management system.

• Order number: 00447604
• Supplier code: 412020-1MCHO
• Barcode: 082324059698
• Model: MEGA SI+
• Sonar: MSI+, MDI+, Dual Spectrum CHIRP
• Transducer: Not included (Control Head Only)
• Dimensions (WxHxD): 30.7 x 22.6 x 8.9 cm
• Screen size: 12.1 inches
• Resolution (HxV): 1280 x 800 pixels
• CHIRP Frequencies: Full 150-220 kHz, Narrow 180-240 kHz, Wide 140-200 kHz
• CHIRP Imaging Frequencies: SI 405-505 kHz, MSI+ 1100-1200 kHz, DI 420-520 kHz, MDI+ 1125-1225 kHz
• Sonar depth range: up to 360 meters
• Depth Range Down: MDI+ 61m, DI 122m
• Lateral reach: MSI+ 122m, SI 244m
• Voltage: 12 V
• Power consumption: 3.2 A
• Fuse rating: 5 A
• Memory card slots: 2x MSD
• Connectivity: Wi-Fi, NMEA 2000®, Bluetooth, Ethernet
• Compatibility: Fully compatible with One-Boat Network™
• Additional features: Supports advanced navigation with Minn Kota bow engine, anchor management with Talon and Raptor, waypoint management system capable of syncing 10,000 fishing spots
