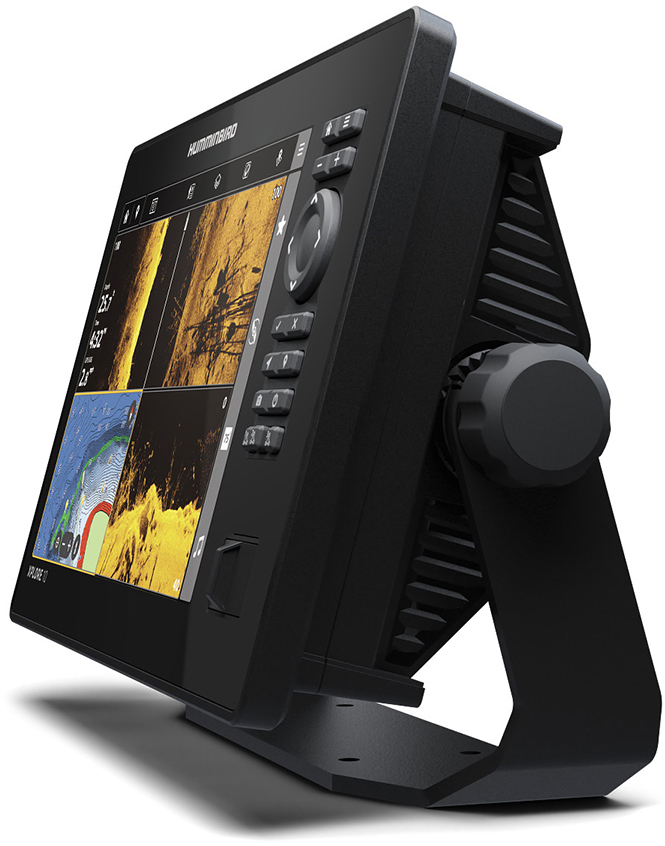

Humminbird 412020-1M - Xplore 12 CMSI+

Humminbird 412020-1M - Xplore 12 CMSI+

The XPLORE 12 CMSI+ offers the same high-speed and high-definition experience as the CHO model but comes complete with the XM 14 HW CMSI T transducer. It delivers unparalleled sonar clarity and detailed imaging through the Full-HD Cross Touch® screen that combines touchscreen responsiveness with key control. The anti-glare screen ensures optimal visibility even with polarized sunglasses, enhancing usability in bright environments.

Equipped with a powerful quad-core processor, this model provides swift navigation through its upgraded Cross Touch® interface. Available in 9-, 10-, and 12-inch displays, this device integrates Wi-Fi, NMEA 2000®, Bluetooth, and Ethernet connectivity, ensuring full compatibility with the One-Boat Network™. It enables advanced navigation capabilities, including control of Minn Kota bow engines, management of Talon and Raptor anchors, and synchronization of up to 10,000 fishing spots using the waypoint management system.

• Order number: 00447605
• Supplier code: 412020-1M
• Barcode: 082324059704
• Model: MEGA SI+
• Sonar: MSI+, MDI+, Dual Spectrum CHIRP
• Transducer: XM 14 HW CMSI T included
• Dimensions (WxHxD): 30.7 x 22.6 x 8.9 cm
• Screen size: 12.1 inches
• Resolution (HxV): 1280 x 800 pixels
• CHIRP Frequencies: Full 150-220 kHz, Narrow 180-240 kHz, Wide 140-200 kHz
• CHIRP Imaging Frequencies: SI 405-505 kHz, MSI+ 1100-1200 kHz, DI 420-520 kHz, MDI+ 1125-1225 kHz
• Sonar depth range: up to 360 meters
• Depth Range Down: MDI+ 61m, DI 122m
• Lateral reach: MSI+ 122m, SI 244m
• Voltage: 12 V
• Power consumption: 3.2 A
• Fuse rating: 5 A
• Memory card slots: 2x MSD
• Connectivity: Wi-Fi, NMEA 2000®, Bluetooth, Ethernet
• Compatibility: Fully compatible with One-Boat Network™
• Additional features: Advanced navigation with Minn Kota bow engine, anchor management with Talon and Raptor, waypoint synchronization system for 10,000 fishing spots
