SKU:
TN 00447591
€ 1.418,10
1-2 weeks delivery time
-
+
The Humminbird 411380-1CHO Helix 9 CHIRP Mega SI+ GPS G4N CHO is ideal for users requiring a powerful sonar system with wide coverage. It supports multiple imaging modes, including MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP, along with built-in GPS, Bluetooth, Ethernet, and NMEA 2000 compatibility. This 9-inch keypad-controlled model offers extensive sonar coverage and multiple mounting options.
- Description
- Ask a Question
-

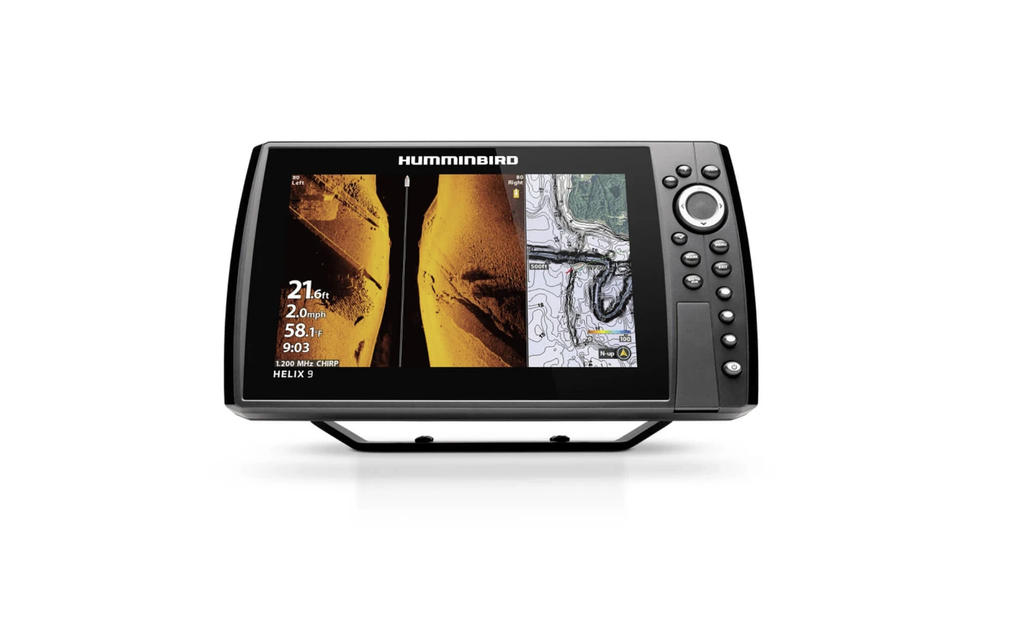

Humminbird 411380-1CHO - Helix 9 CHIRP Mega SI+ GPS G4N CHO
The Humminbird 411380-1CHO is perfect for those who require a powerful sonar system with expansive coverage.
- Order Number: 00447572
- Supplier Code: 411380-1CHO
- Barcode: 082324054991
- Display Size: 9 in diagonal
- Display Pixel Matrix: 1024H x 600V
- Compatible With: Minn Kota US2 Sonar, Built-In MEGA DI, Talon/Raptor, i-Pilot Link, MEGA SI, MEGA Live, AIS, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network.
- Features: Networking, Down Imaging, Built-In GPS, Bluetooth, Side Imaging, Dual Spectrum CHIRP, Built-In Mapping, MEGA Imaging+.
- Memory Card Slot: Dual Micro SD.
- Sonar Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+.
- Sonar Coverage: 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB.
- Sonar Optional: 50/83/200 kHz.
- CHIRP Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz), Optional (28-250 kHz).
- Depth-Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer).
- CHIRP Imaging Frequencies: MEGA DI+ (1100-1200 kHz), 800 kHz SI+ (780-840 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), MEGA SI+ (1050-1175 kHz), 455 kHz DI+ (420-520 kHz).
- Depth Down Imaging: 200 ft (MEGA), 400 ft (455 kHz), 125 ft (800 kHz).
- Range Side Imaging: 800 ft (455 kHz), 250 ft (800 kHz), 400 ft (MEGA).
- Interface: Keypad Control.
- Power Draw: 2.4 Amps.
- Power Input: 10.8-20 VDC.
- Power Output Peak-to-Peak: 8000 Watts.
- Power Output RMS: 1000 Watts.
- Screen Snap Shot: Included.
- Sonar Recording: Included.
- Mount Standard: Gimbal, size 12.00 in W x 7.0 in H x 4.13 in D.
- Mount Optional: In-Dash Mounting Kit, size 12.00 in W x 6.63 in H x 1.32 in D.
-
