The Humminbird 411320-1 Helix 15 CHIRP Mega SI+ GPS G4N offers MEGA Side and Down Imaging+ for ultra-clear visuals, Dual Spectrum CHIRP sonar with a Low Q transducer, and extensive networking options via Ethernet and Bluetooth. It supports AutoChart Live mapping, NMEA 2000 integration, and works with MEGA Live transducers and Navionics charts. The unit features a large 15.4-inch 1280 x 800 screen.
- Description
- Ask a Question
-

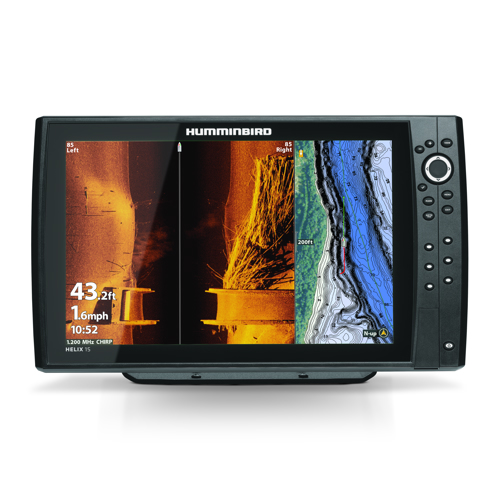

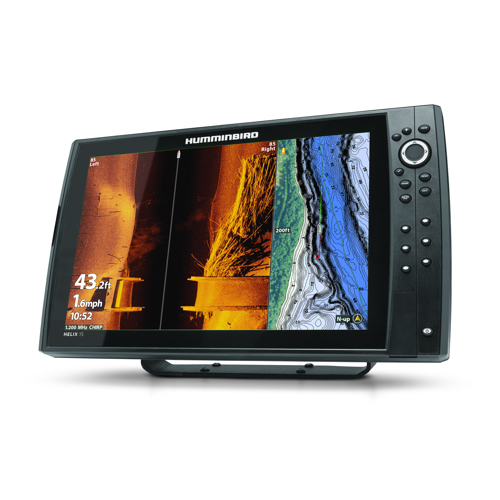

Humminbird 411320-1 - Helix 15 CHIRP Mega SI+ GPS G4N
The Helix 15 CHIRP Mega SI+ GPS G4N is engineered for complete underwater clarity, featuring both MEGA Side and Down Imaging+, integrated networking, and full sonar control.
- MEGA Side Imaging+ and MEGA Down Imaging+ provide ultra-clear visuals with 20% more detail than standard imaging.
- Dual Spectrum CHIRP offers selectable 'Wide' and 'Narrow' modes for optimal fish tracking.
- Low Q CHIRP transducer ensures sharp arches, strong separation, and minimal adjustment.
- Ethernet-ready for quick connection to multiple units and advanced accessories like CHIRP radar and 360 Imaging.
- Bluetooth connectivity for wireless control of Talon, Raptor, and Cannon systems, plus mobile integration via FishSmart App.
- NMEA 2000® compatible for real-time display of vessel performance, environmental, and weather data.
- AutoChart Live allows 8-hour recordings stored internally or on Zero Line mapping cards.
- Supports Humminbird MEGA Live transducer and Navionics charts including Platinum+ and Navionics+.
- Order number: 00447513
- Supplier code: 411320-1
- Barcode: 0082324054792
- Model: MEGA SI+
- Sonar: MSI+ / MDI+ / Dual Spectrum CHIRP
- Transducer: XM 9 HW MSI T
- Dimensions (W x H x D): 44 x 25.8 x 11 cm
- Screen size: 15.4 inches
- Resolution: 1280x800 pixels
- CHIRP frequencies: Full 150–200 / Narrow 140–200 / Wide 180–240 kHz
- CHIRP Imaging frequencies: 455SI 405–505 / 455DI 435–535 / 800SI 780–840 / 800DI 800–860 / MSI+ 1050–1175 / MDI+ 1100–1200 kHz
- Sonar depth range: up to 360 meters
- Depth range down: MDI+ 61m / 800kHz 38m / 455kHz 122m
- Lateral reach: MSI+ 122m / 800kHz 76m / 455kHz 244m
- Voltage range: 10.8 – 20 Volts
- Power consumption: 4.1 A
- Fuse rating: 7.5 A
- Card slots: 2 x MSD
-
