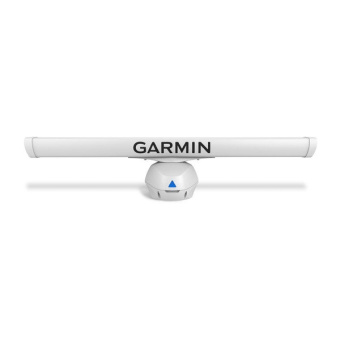

Garmin GMR Fantom 56 Open-array Radar And Pedestal
The Garmin GMR Fantom 56 Open-array Radar And Pedestal is a powerful and efficient radar system designed for marine applications. With a maximum range of 72 nm, this radar provides accurate and detailed information about your surroundings, ensuring safety and navigation precision.
Featuring a compact and sturdy design, the pedestal measures 16.6" x 14.3" x 10.7" (42.1 x 36.4 x 27.1 cm), while the full assembly stands at 15.9" in height and has a diameter of 75.2" (40.3 cm height x 190.9 cm diameter). This radar system is lightweight with the array weighing 16 lb (7.3 kg) and the pedestal weighing 34.7 lb (15.7 kg).
The Garmin GMR Fantom 56 Open-array Radar And Pedestal is built to withstand harsh marine conditions with its IPX6 water rating. It can handle wind loads of up to 80kt, ensuring reliable performance even in challenging weather conditions.
Equipped with a 72" (182.9 cm) antenna length, this radar system offers a beam width of 1.25° horizontally and 23° vertically, providing accurate and detailed information about the surroundings. The rotation speed can be adjusted to either 24 or 48 rpm, offering versatility and flexibility in different scenarios.
With a radar type of Open-Array, the Garmin GMR Fantom 56 offers exceptional performance and reliability. It operates on a power input of 10-32 V DC and has a transmit power of 50 W, ensuring efficient and consistent radar operation.
-
