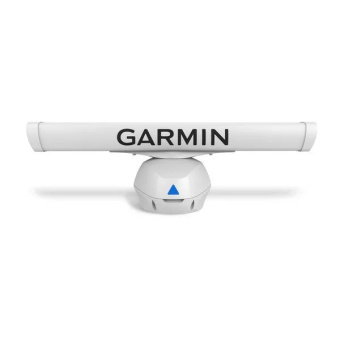

Garmin GMR Fantom 54 Open-array Radar And Pedestal, 72 NM, 50W, 131,4 cm x 40,3 cm

Article CN-STK100001217

€ 8.679,56

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Garmin GMR Fantom 54 Open-array Radar And Pedestal is a high-performance marine radar system with advanced features and reliable performance. It has a sleek design, lightweight construction, and can withstand harsh marine environments. With a maximum range of 72 nm and a transmit power of 50 W, it provides accurate and detailed radar imagery for enhanced navigation.

Description
Ask a Question

Garmin GMR Fantom 54 Open-array Radar And Pedestal

The Garmin GMR Fantom 54 Open-array Radar And Pedestal is a high-performance radar system designed for marine applications. With its advanced features and reliable performance, it provides accurate and detailed radar imagery to enhance your navigation experience.

Featuring a sleek and compact design, the pedestal measures 16.6" x 14.3" x 10.7" (42.1 x 36.4 x 27.1 cm), while the full assembly stands at 15.9" in height and has a diameter of 51.8" (40.3 cm height x 131.4 cm diameter). This radar system is lightweight, with the array weighing 11.4 lb (5.2 kg) and the pedestal weighing 34.7 lb (15.7 kg).

With an IPX6 water rating, the Garmin GMR Fantom 54 is built to withstand harsh marine environments. It can handle a maximum wind load of 80kt and has an antenna length of 48" (121.92 cm). The rotation speed can be set at 24 or 48 rpm, and it offers a beam width of 1.8° horizontal and 23° vertical.

The maximum range of this open-array radar system is 72 nm, allowing you to detect objects even at a distance. It also has a minimum range of 6 meters for close-range monitoring. The radar operates on a power input of 10-32 V DC and has a transmit power of 50 W.
