SKU:
CN STK100001225
€ 7.842,89
1-2 weeks delivery time
-
+
The Garmin GMR 436 xHD3 Open-Array Radar is a 6’ radar combining high-definition imaging and Garmin’s latest platform technology for optimal weather, obstacle, and traffic detection. Offering a range of up to 72 nautical miles, it includes features like Scan Averaging Technology, Split-Screen Dual-Range Display, and MARPA Target Tracking. With a 100-knot wind rating and quiet operation, it's built for offshore cruising or fishing with a focus on safety and performance.
- Description
- Ask a Question
-

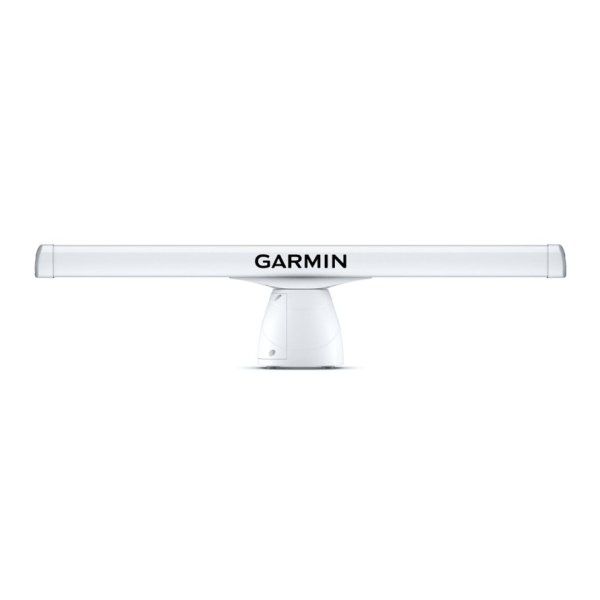

Garmin GMR 436 xHD3 Open-Array Radar (20 Metres - 72 Nautical Miles)
This 6’ open-array radar integrates Garmin’s high-definition imaging and cutting-edge technology, designed to improve detection of weather, obstacles, and traffic for offshore cruising or fishing.
- Up to 72-nautical mile range
- Scan Averaging Technology for clearer target displays
- Improved Target-Size Processing for accurate target visualization
- Split-Screen Dual-Range Display with independent controls for both close and long ranges
- 100-Knot Commercial Grade Wind Rating
- Quiet Open-Array Drive Motor for smoother operation
- True Echo Trails for tracking boats and identifying collision threats
- Angular Target-Size Adjustment for better target definition
- Dynamic Auto Gain for automatic adjustment of gain levels in various environments
- Radar Overlay capability on chartplotter screens
- MARPA Target Tracking to track up to 30 targets
- Guard Zone alert system for safety
- Range and Bearing Cues for precise measurements
Dimensions:
- 6' array: 1938 x 122 x 170 mm (76.5" x 4.8" x 6.7")
- Pedestal: 520 x 328 x 314 mm (20.5" x 12.9" x 12.4")
- Weight: 29.6 kg (6' array and pedestal)
Specifications:
- Waterproof: IPX6
- Max Wind Load: 80KT (100KT with optional voltage converter upgrade)
- Antenna Length: 72 in. (183 CM)
- Rotation Speed (RPM): 24 and 48 RPM
- Beam Width: 1.1° horizontal, 23° vertical
- Maximum Range: 72 nautical miles
- Minimum Range: 20 meters
- Radar Type: Open-array
- Power Input: 11-32 V DC
- Typical Power Consumption: 55 W (Normal mode)
- Transmit Power: 4 kW
-
