SKU:
CN STK100001224
€ 6.981,81
1-2 weeks delivery time
-
+
The Garmin GMR 434 xHD3 Open-Array Radar is a 4’ radar designed to offer high-definition imaging and advanced detection capabilities for offshore mariners and anglers. With a range of up to 72 nautical miles, it provides features like Scan Averaging Technology, Split-Screen Dual-Range Display, True Echo Trails, and MARPA Target Tracking, ensuring accurate target detection and collision avoidance. This radar is built to withstand harsh conditions, with a 100-knot wind rating and waterproof construction.
- Description
- Ask a Question
-

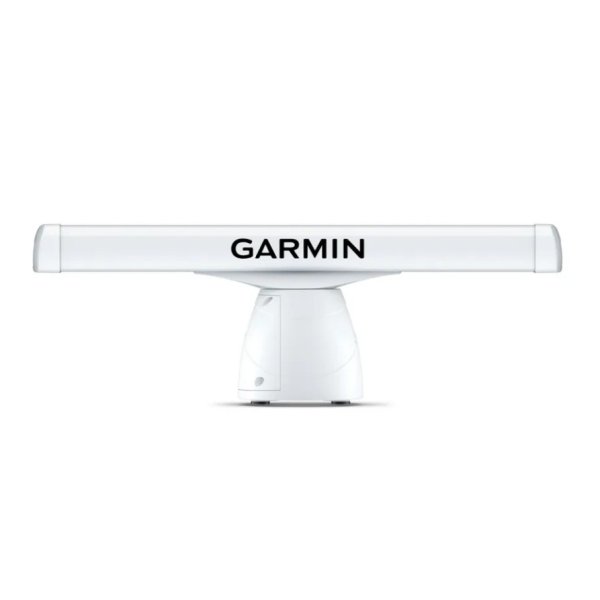

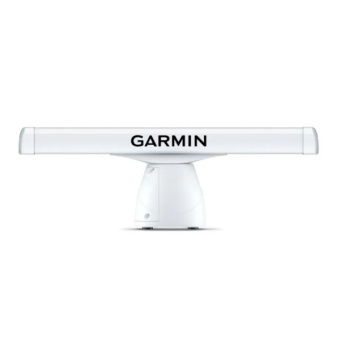

Garmin GMR 434 xHD3 Open-Array Radar (20 Metres - 72 Nautical Miles)
This 4’ open-array radar combines high-definition imaging with the latest Garmin platform technology, designed to provide superior detection of weather, obstacles, and traffic for offshore mariners and anglers.
- Up to 72-nautical mile range
- Scan Averaging Technology to reduce sea clutter and improve target detection
- Improved Target-Size Processing for better target interpretation
- Split-Screen Dual-Range Display for independent range settings
- 100-Knot Commercial Grade Wind Rating
- Quiet Open-Array Drive Motor
- True Echo Trails to track moving targets and potential collision threats
- Angular Target-Size Adjustment for more accurate object shapes
- Dynamic Auto Gain for automatic gain adjustment in various sea conditions
- Radar Overlay for a better view on your chartplotter’s map screen
- MARPA Target Tracking for tracking up to 30 targets
- Guard Zone with alarms when objects enter the zone
- Range and Bearing Cues for rapid distance and bearing measurements
Specifications:
- Waterproof: IPX6
- Max Wind Load: 80KT (100KT with optional voltage converter upgrade)
- Antenna Length: 48 in. (122 CM)
- Rotation Speed (RPM): 24 and 48 RPM
- Beam Width: 1.8° horizontal, 23° vertical
- Maximum Range: 72 nautical miles
- Minimum Range: 20 meters
- Radar Type: Open-array
- Power Input: 11-32 V DC
- Typical Power Consumption: 55 W (Normal mode)
- Transmit Power: 4 kW
-
