SKU:
CN STK100001229
€ 13.311,99
1-2 weeks delivery time
-
+
The Garmin GMR 2536 xHD3 Open-Array Radar is a 6’ radar designed for mariners who need high-definition imaging and enhanced detection for offshore cruising and fishing. With a range of up to 96 nautical miles, it features advanced technologies such as Scan Averaging, MARPA Target Tracking, Dynamic Sea Filter, and Auto Bird Gain. The radar also includes Dual-Radar Support and Guard Zones for increased safety, offering precise target tracking and integration with chartplotters.
- Description
- Ask a Question
-

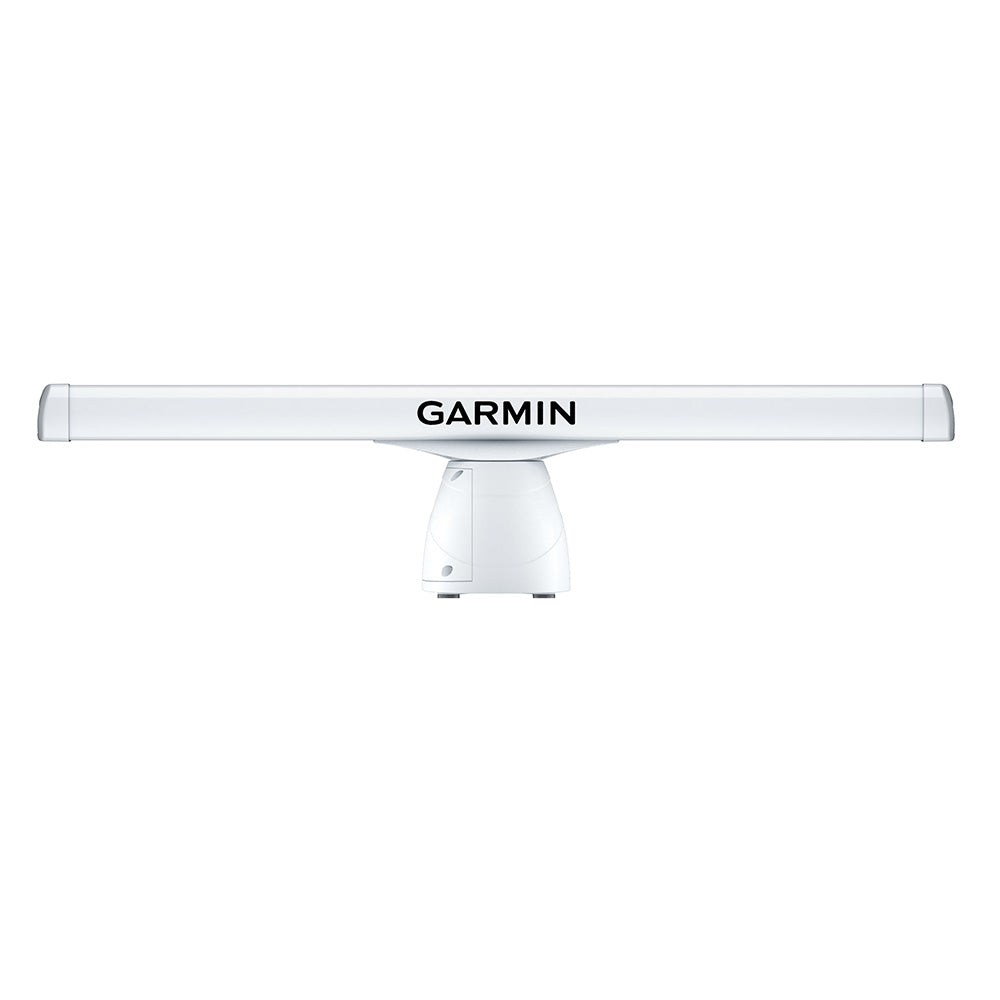

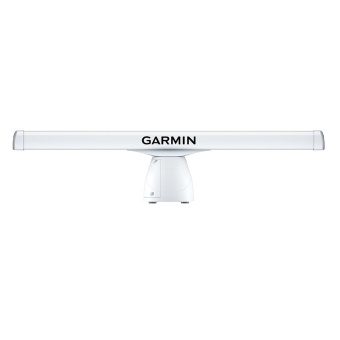

Garmin GMR 2536 xHD3 Open-Array Radar (20 Metres - 96 Nautical Miles)
This 4’ open-array radar offers high-definition imaging for optimal weather, obstacle, and traffic detection for mariners, with advanced technology built for offshore cruising and fishing.
- Up to 96-nautical mile range
- Scan Averaging Technology
- Improved Target-Size Processing
- Split-Screen Dual-Range Display
- 100-Knot Commercial Grade Wind Rating
- Quiet Open-Array Drive Motor
- New Scan Averaging Technology
- Angular Target-Size Adjustment
- True Echo Trails to track moving targets
- Dual Range with Overlay for independent range settings
- Dynamic Auto Gain for optimal settings
- Radar Overlay for easy integration with chartplotter
- High-Resolution Radar for precise long-range detection
- Dual-Radar Support for increased redundancy
- Dynamic Sea Filter for smooth operation in any sea conditions
- Auto Bird Gain to locate fish-rich bird flocks
- MARPA Target Tracking (up to 30 targets)
- Guard Zone for safety alerts
- Range and Bearing Cues for accurate measurement
Includes: GMR xHD3 25 kW open array radar with 6’ antenna, power cable (15 m), network cable (15 m), mounting hardware kit, installation instructions.
Dimensions: 6' array - 1938 x 122 x 170 mm / 76.5" x 4.8" x 6.7"
Weight: 6' array and pedestal - 30.4 kg
Specifications:
- Waterproof: IPX6
- Max Wind Load: 80KT (100KT with optional voltage converter upgrade)
- Antenna Length: 48 in. (122 CM)
- Rotation Speed (RPM): 24 and 48 RPM
- Beam Width: 1.1° horizontal, 23° vertical
- Maximum Range: 96 nautical miles
- Minimum Range: 20 meters
- Power Input: 10-32 V DC
- Power Consumption (Standby): 18 W
- Typical Power Consumption (Normal mode): 70 W
- Transmit Power: 25 kW
-
