SKU:
CN STK100001228
€ 12.450,91
1-2 weeks delivery time
-
+
The Garmin GMR 2534 xHD3 Open-Array Radar is a powerful 4’ radar offering high-definition imaging for weather, obstacle, and traffic detection. With a range of up to 96 nautical miles, it includes features like Scan Averaging Technology, Target-Size Processing, and True Echo Trails. The radar also offers MARPA Target Tracking, Guard Zone alarms, and a Dual Range with Overlay for optimal visibility, making it ideal for offshore cruising and fishing in diverse sea conditions.
- Description
- Ask a Question
-

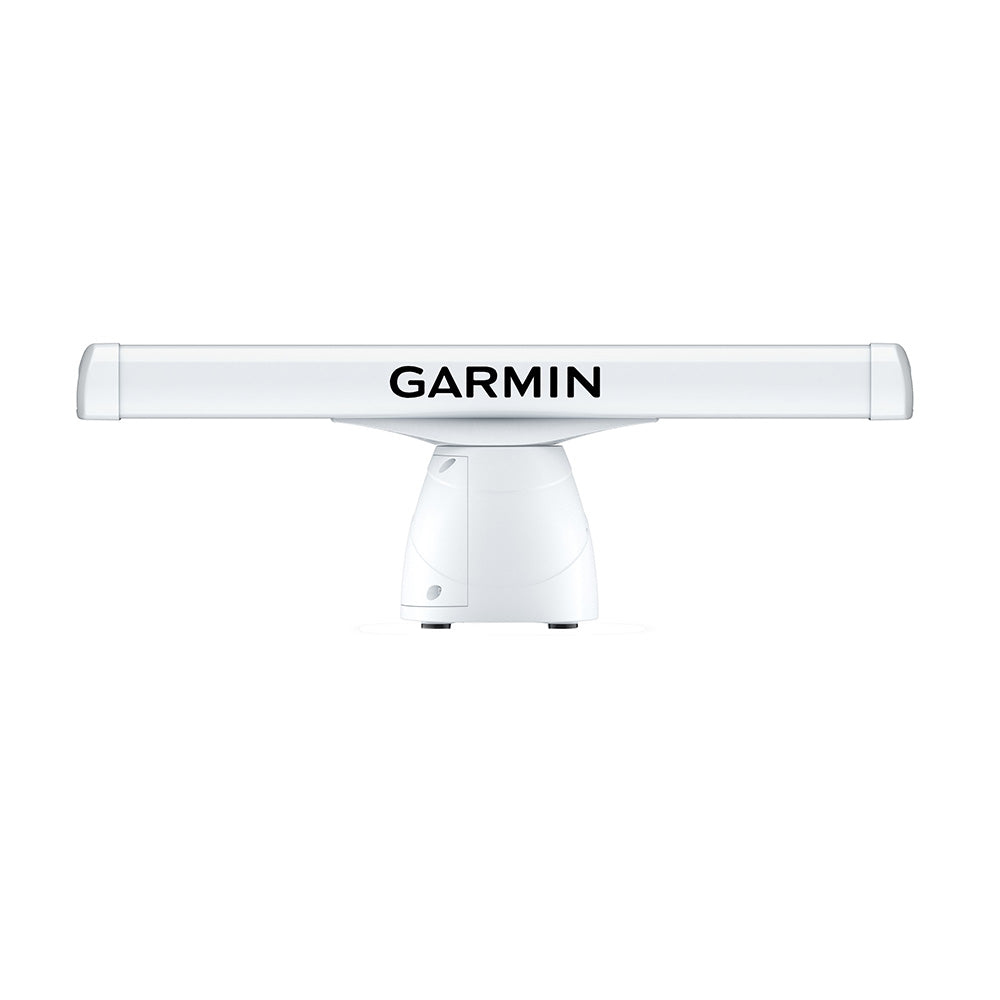

Garmin GMR 2534 xHD3 Open-Array Radar (20 Metres - 96 Nautical Miles)
This robust 4’ open-array radar is ideal for mariners who need high-definition imaging and enhanced traffic and obstacle detection, whether cruising or fishing offshore.
- Up to 96-nautical mile range
- Scan Averaging Technology
- Improved Target-Size Processing
- Split-Screen Dual-Range Display
- 100-Knot Commercial Grade Wind Rating
- Quiet Open-Array Drive Motor
- New Scan Averaging Technology
- Angular Target-Size Adjustment
- True Echo Trails for easy moving target detection
- Dual Range with Overlay for flexible viewing
- Dynamic Auto Gain for optimal settings
- Radar Overlay for chartplotter display
- High-Resolution Radar for identifying distant targets
- Dual-Radar Support for backup data sources
- Dynamic Sea Filter for all sea conditions
- Auto Bird Gain for locating fish-rich bird flocks
- MARPA Target Tracking for collision avoidance (up to 30 targets)
- Guard Zone with alarm for safety monitoring
- Range and Bearing Cues for rapid distance and bearing measurements
Dimensions: 4' array - 1325 x 122 x 170 mm / 52.2" x 4.8" x 6.7"
Weight: 4' array and pedestal - 28.4 kg
Specifications:
- Waterproof: IPX6
- Max Wind Load: 80KT (100KT with optional voltage converter upgrade)
- Antenna Length: 48 in. (122 CM)
- Rotation Speed (RPM): 24 and 48 RPM
- Beam Width: 1.8° horizontal, 23° vertical
- Maximum Range: 96 nautical miles
- Minimum Range: 20 meters
- Power Input: 10-32 V DC
- Power Consumption (Standby): 18 W
- Typical Power Consumption (Normal mode): 70 W
- Transmit Power: 25 kW
-
