The Garmin GMR 1236 xHD3 Open-Array Radar is a 6’ radar designed for offshore mariners and fishermen, offering high-definition imaging for superior detection of weather and obstacles. It features a 96-nautical-mile range, Scan Averaging Technology, MARPA Target Tracking, and Guard Zone with alarm systems. With robust construction and advanced radar functionality, it provides precise, long-range target detection, enhanced by features like Dynamic Auto Gain and radar overlay for chartplotter integration.
- Description
- Ask a Question
-

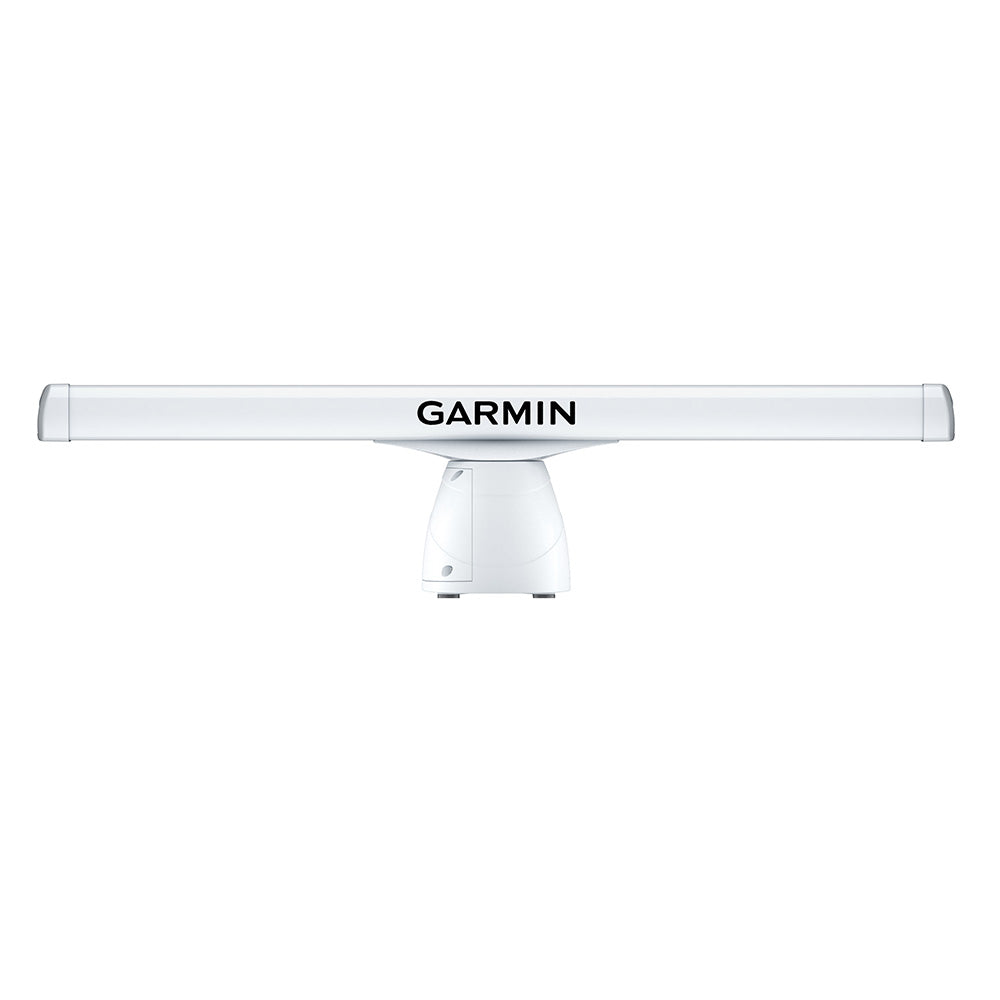

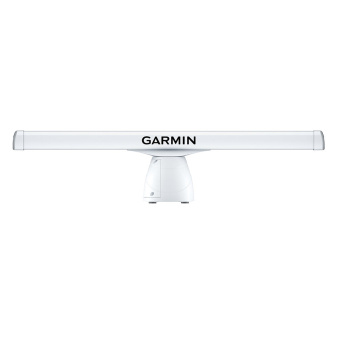

Garmin GMR 1236 xHD3 Open-Array Radar (20 Metres - 96 Nautical Miles)
This robust 6’ open-array radar is designed for mariners cruising or fishing offshore. Combining high-definition imaging with the latest Garmin platform technology, it offers superior weather, obstacle, and traffic detection.
- Up to 96-nautical mile range
- Scan Averaging Technology
- Improved Target-Size Processing
- Split-Screen Dual-Range Display
- 100-Knot Commercial Grade Wind Rating
- Quiet Open-Array Drive Motor
- New Scan Averaging Technology
- Angular Target-Size Adjustment
- True Echo Trails for moving target detection
- Dual Range with Overlay for close and long-range views
- Dynamic Auto Gain for optimal radar settings
- Radar Overlay for chartplotter integration
- High-Resolution Radar for distant target detection
- Dual-Radar Support for redundancy
- Dynamic Sea Filter for various sea conditions
- Auto Bird Gain to locate flocks of birds
- MARPA Target Tracking (up to 30 targets)
- Guard Zone alarm for safety zones
- Range and Bearing Cues for quick measurements
Dimensions: 6' array - 1938 x 122 x 170 mm / 76.5" x 4.8" x 6.7"
Weight: 6' array and pedestal - 29.7 kg
Specifications:
- Waterproof: IPX6
- Max Wind Load: 80KT (100KT with optional voltage converter upgrade)
- Antenna Length: 72 in. (183 CM)
- Rotation Speed (RPM): 24 and 48 RPM
- Beam Width: 1.1° horizontal, 23° vertical
- Maximum Range: 96 nautical miles
- Minimum Range: 20 meters
- Power Input: 10-32 V DC
- Power Consumption (Standby): 18 W
- Typical Power Consumption (Normal mode): 70 W
- Transmit Power: 12 kW
-
