The Garmin GMR 1234 xHD3 Open-Array Radar offers a powerful 4’ radar with high-definition imaging, designed for offshore mariners and fishermen. It has a maximum range of 96 nautical miles, featuring Scan Averaging Technology, Target-Size Processing, and True Echo Trails to ensure superior detection of weather, obstacles, and moving targets. Built with a 100-knot wind rating, it offers enhanced radar capabilities for accurate target tracking and collision avoidance.
- Description
- Ask a Question
-

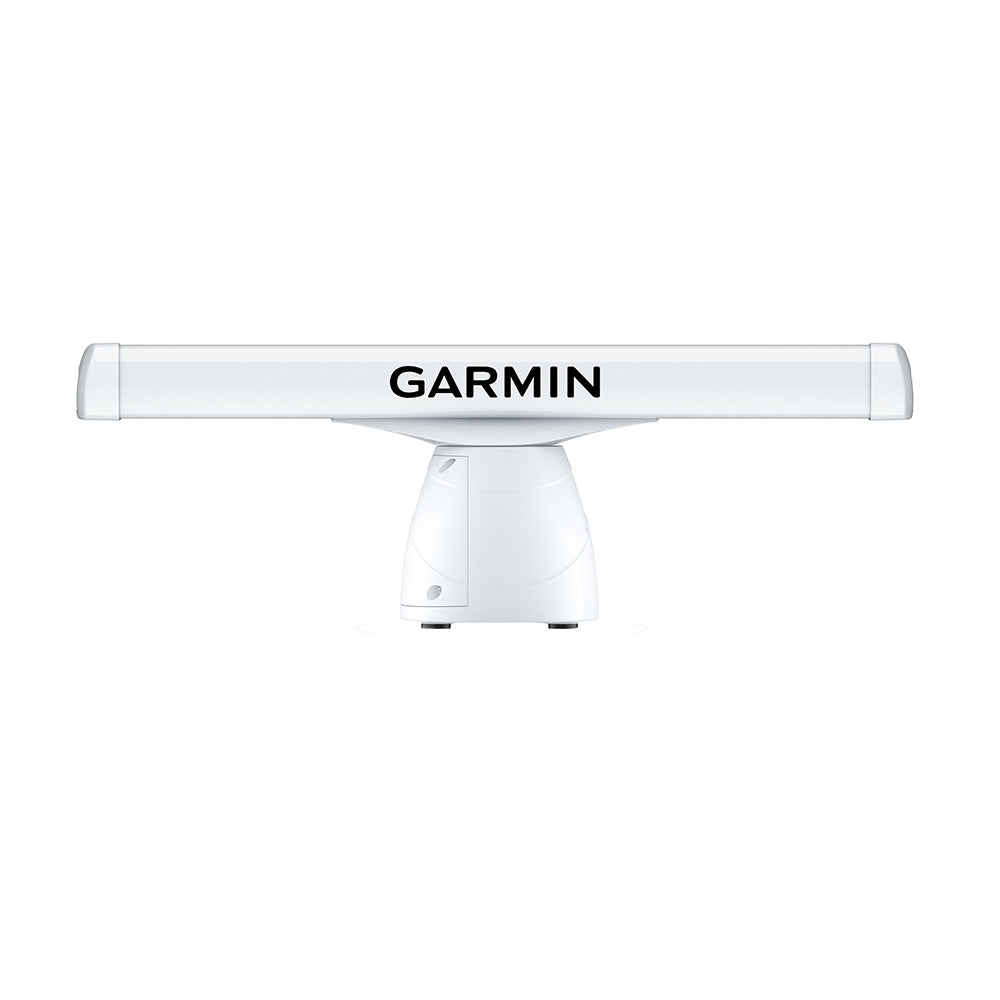

Garmin GMR 1234 xHD3 Open-Array Radar (20 Metres - 96 Nautical Miles)
This powerful 4’ open-array radar features high-definition imaging, designed to help offshore mariners and fishermen detect weather, obstacles, and traffic with extreme accuracy.
- Up to 96-nautical mile range
- Scan Averaging Technology for better target clarity
- Improved Target-Size Processing for optimal target display
- Split-Screen Dual-Range Display with independent range settings
- 100-Knot Commercial Grade Wind Rating
- Quiet Open-Array Drive Motor
- True Echo Trails for historical tracking of moving targets
- Angular Target-Size Adjustment for accurate visual interpretation
- Dynamic Auto Gain for adjusting gain levels according to conditions
- Radar Overlay functionality for better chartplotter integration
- MARPA Target Tracking to track multiple targets simultaneously
- Guard Zone with audible alarms for safety
- Range and Bearing Cues for quick distance and bearing measurements
Dimensions:
- 4' array: 1325 x 122 x 170 mm (52.2" x 4.8" x 6.7")
- Pedestal: 520 x 328 x 314 mm (20.5" x 12.9" x 12.4")
- Weight: 27.7 kg (4' array and pedestal)
Specifications:
- Waterproof: IPX6
- Max Wind Load: 80KT (100KT with optional voltage converter upgrade)
- Antenna Length: 48 in. (122 CM)
- Rotation Speed (RPM): 24 and 48 RPM
- Beam Width: 1.8° horizontal, 23° vertical
- Maximum Range: 96 nautical miles
- Minimum Range: 20 meters
- Radar Type: Open-array
- Power Input: 10-32 V DC
- Typical Power Consumption: 70 W (Normal mode)
- Transmit Power: 12 kW
-
