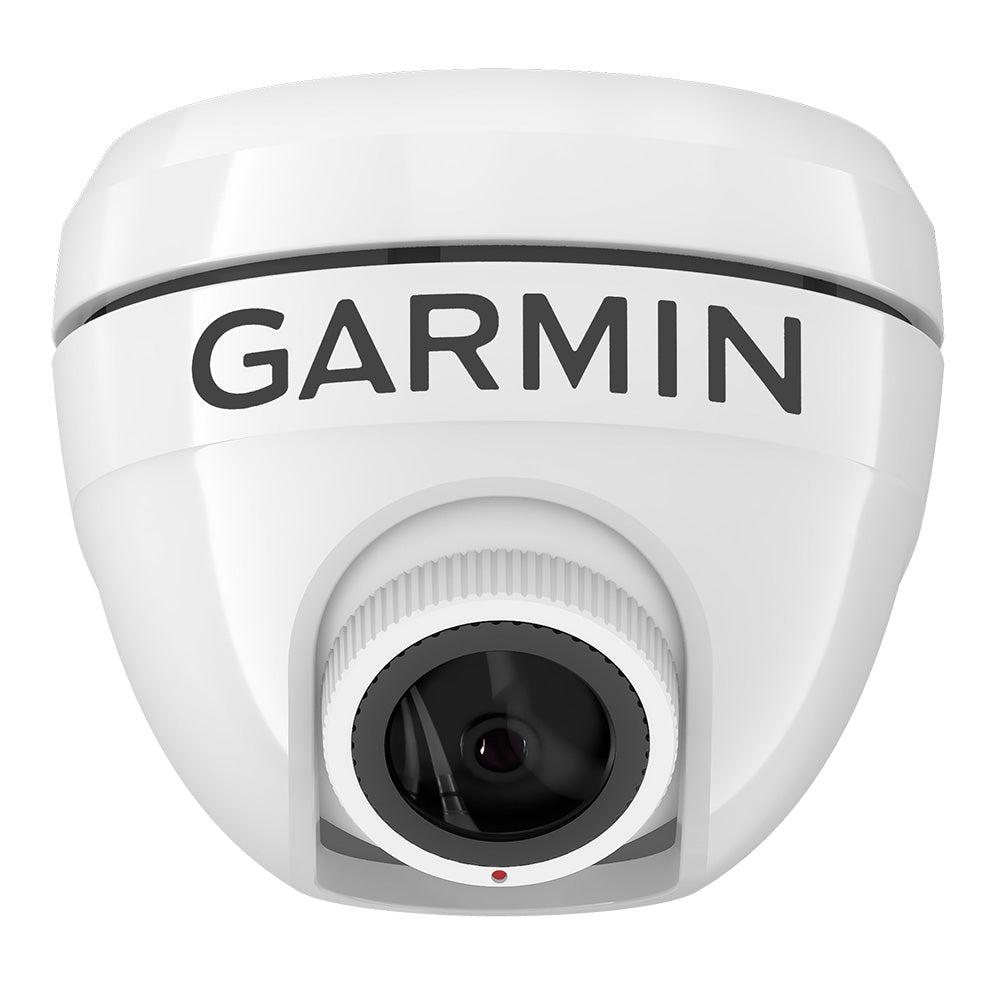

Garmin GC 245 Surface-mount Camera (White)

Garmin GC 245 Surface-mount Camera (White)

The Garmin GC 245 Surface-mount Camera offers high-resolution marine footage to help with docking your boat. Enhance proximity awareness and have more confidence when navigating tight spaces.

• Distance markers specific to your boat and customizable guidance lines
• 1080p high-resolution output
• Fisheye or standard view, with an optional BirdsEye camera view
• Full integration with Garmin marine network or Garmin Bluenet™ network
• Set your own guidance lines to avoid obstacles in the marina
• Distance markers calibrated to your boat's specifications
• Two mounting options: Dome up or dome down for flexible installation
• Three camera views: FishEye, standard, and optional BirdsEye view for better perspectives
• Simultaneous camera feeds on compatible MFDs, or custom combo page display
• Digital zoom and pan for closer or alternative views of the video feed

In The Box:

• GC 245 surface mount camera
• GVA 10 with integrated power and network cables
• Network adapter cable (500 mm)
• Video coaxial cable (8 m)
• Mounting hardware
• Documentation

Specifications:

• Unit dimensions: 2.4” x 2.4” x 2.2” (6.1 x 6.1 x 5.1 cm)
• Weight: 3.25 oz (92 g)
• Power supply: 12V/24V
• Operating current: 300 mA at 12VDC; 200 mA at 24VDC
• Power consumption: 4.5 W
• Connection to chartplotter: IP
• Mounting options: Ball-up or ball-down
• Waterproof: IPX7 rating
• Video resolution: 1920 x 1080 pixels
• Video output: H.264 over GMN and BlueNet™
• Selectable views: FishEye, standard, and BirdsEye (OEM calibrated)
• Augmented reality features: Distance markers (OEM calibrated) and user-set guidance lines
• Viewing angle: 160°H / 90°V
• Operating temperature: -20°C to +60°C
• Day/night operation: RGB mode full-time
• Professional calibration required for BirdsEye view and distance markers
• 1080p resolution available on select chartplotters only
