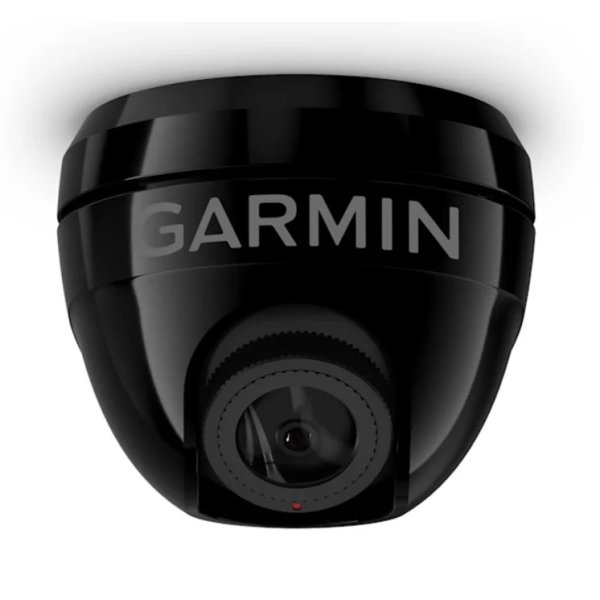

Garmin GC 245 Surface-mount Camera (Black)

Garmin GC 245 Surface-mount Camera (Black)

The Garmin GC 245 Surface-mount Camera (Black) provides high-definition video to enhance your docking experience. With its sleek design and advanced features, it ensures better proximity awareness and obstacle avoidance when navigating close quarters.

• Available in black or white finishes to match your boat's style
• Distance markers and customizable guidance lines (professional calibration required)
• Simple installation with two mounting options: Dome up or down
• Seamless integration with the Garmin Marine Network or Garmin BlueNet™ network
• Display up to four camera feeds simultaneously on compatible chartplotters
• Choose between FishEye, standard, and optional BirdsEye views for better perspectives
• Digital zoom and pan for a closer look or different angle on the video feed
• Built with IPX7 water resistance for durability in marine environments

In The Box:

• GC 245 surface mount camera
• GVA 10 with integrated power and network cables
• Network adapter cable (500 mm)
• Video coaxial cable (8 m)
• Mounting hardware
• Documentation

Specifications:

• Unit dimensions: 2.4” x 2.4” x 2.2” (6.1 x 6.1 x 5.1 cm)
• Weight: 3.25 oz (92 g)
• Power supply: 12V/24V
• Operating current: 300 mA at 12VDC; 200 mA at 24VDC
• Power consumption: 4.5 W
• Connection to chartplotter: IP
• Mounting options: Ball-up or ball-down
• Waterproof: IPX7 rating
• Video resolution: 1920 x 1080 pixels
• Video output: H.264 over GMN and BlueNet™
• Selectable views: FishEye, standard, and BirdsEye (OEM calibrated)
• Augmented reality features: Distance markers (OEM calibrated) and user-set guidance lines
• Viewing angle: 160°H / 90°V
• Operating temperature: -20°C to +60°C
• Day/night operation: RGB mode full-time
• Professional calibration required for BirdsEye view and distance markers
• 1080p resolution available on select chartplotters only
