The Garmin EmpirBus SP8, Vertical, provides the same functionality as the horizontal version but is designed for vertical installation. It includes 8 switches and LED indicators for efficient system control and monitoring within the EmpirBus network.
- Description
- Ask a Question
-

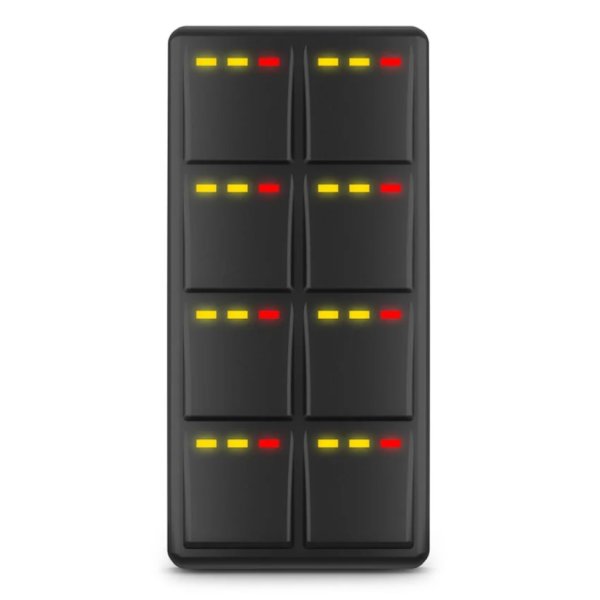

Garmin EmpirBus SP8, Vertical
The Garmin EmpirBus SP8 Vertical offers the same powerful functionality as its horizontal counterpart but is designed for vertical installation. With 8 switches and LED indicators, it provides control and monitoring features for complex EmpirBus systems.
- Dimensions: 230 x 106 x 38 mm (9.1″ x 4.2″ x 1.5″)
- Weight: 400 g (14.1 oz)
- Ambient temperature: -20° C to +55° C
- Enclosure water rating: IP65
- Communication: CAN-bus NMEA 2000® network, LEN-0
- Output: High side 13 ch 10A, 7 ch 5A
- Digital input: Ground contact switch input 15, Bilge pump monitor 2
- Analog Input: Volt 3 @ 0-16 V +/-1%, Resistance 2 @ 0-1500 ohm +/- 5%
- Power Supply: Maximum current 50A, Power off current consumption 60mA, Supply voltage (12V) 9-16VDC
- Connector: NMEA 2000® Micro 5-pin M12 male, Channels Molex MX150 L 16 circuits, Power terminal M6 bolt
-
