SKU:
CN ST0100236800
€ 1.104,28
1-2 weeks delivery time
-
+
The Garmin EmpirBus SP8, Horizontal, is a versatile digital switch designed for controlling and monitoring EmpirBus systems. It features 8 switches with LED indicators and is built for durability, offering both digital and analog inputs for enhanced control.
- Description
- Ask a Question
-

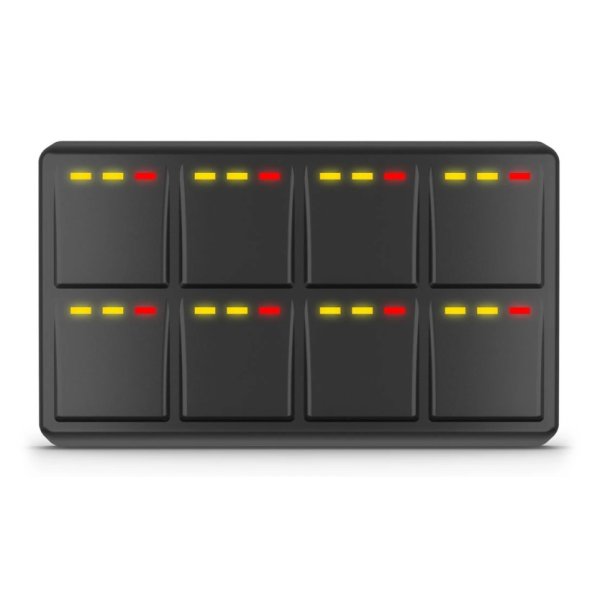

Garmin EmpirBus SP8, Horizontal
The Garmin EmpirBus SP8 Horizontal is a versatile digital switch for EmpirBus control, monitoring, and distribution systems. It features 8 switches, allowing control inputs and feedback to be transmitted via individual LED indicators. This switch is ideal for those looking for efficient control and monitoring solutions for their systems.
- Dimensions: 230 x 106 x 38 mm (9.1″ x 4.2″ x 1.5″)
- Weight: 400 g (14.1 oz)
- Ambient temperature: -20° C to +55° C
- Enclosure water rating: IP65
- Communication: CAN-bus NMEA 2000® network, LEN-0
- Output: High side 13 ch 10A, 7 ch 5A
- Digital input: Ground contact switch input 15, Bilge pump monitor 2
- Analog Input: Volt 3 @ 0-16 V +/-1%, Resistance 2 @ 0-1500 ohm +/- 5%
- Power Supply: Maximum current 50A, Power off current consumption 60mA, Supply voltage (12V) 9-16VDC
- Connector: NMEA 2000® Micro 5-pin M12 male, Channels Molex MX150 L 16 circuits, Power terminal M6 bolt
-
