SKU:
CN ST0100237200
€ 801,75
1-2 weeks delivery time
-
+
The Garmin EmpirBus SP12 is available in two versions, either with or without a screen, and is designed for control, monitoring, and distribution in EmpirBus systems. It provides control through switches and feedback through LED indicators, making it suitable for various setups. The unit is compact and features an IP65 enclosure, supporting CAN-bus NMEA 2000® communication.
- Description
- Ask a Question
-

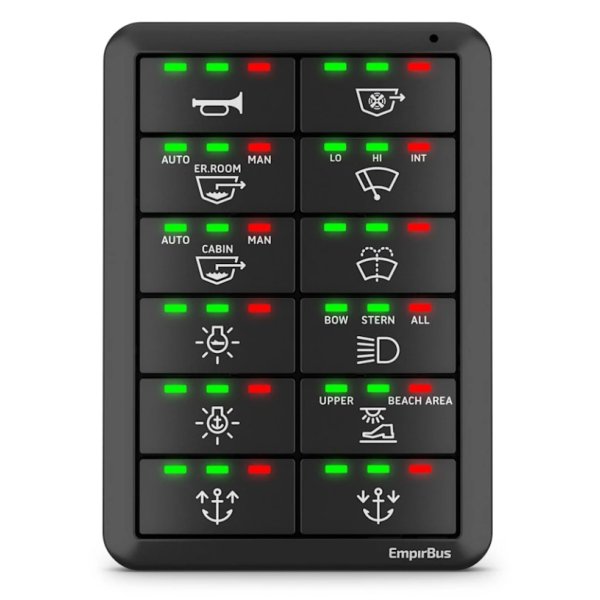

Garmin EmpirBus SP12
The Garmin EmpirBus SP12 is a digital switch component designed for EmpirBus control, monitoring, and distribution systems. It offers two configuration options, either a nonscreen 12x2-way or a with-screen 10x2-way setup. The unit allows control inputs through switches and provides status information back to the user via individual LED indicators.
- Dimensions (WxHxD): 230 x 106 x 38 mm (9.1″ x 4.2″ x 1.5″)
- Weight (unit only): 400 g (14.1 oz)
- Ambient temperature: -20° C to +55° C
- Enclosure water rating: IP65
- Communication: CAN-bus NMEA 2000® network, LEN-0
Output Specifications
- High side: 13 channels at 10A, 7 channels at 5A
- Digital input: 15 ground contact switch inputs, 2 bilge pump monitors
Analog Input Specifications
- Volt: 3 inputs at 0-16 V +/-1%
- Resistance: 2 inputs at 0-1500 ohm +/- 5%
Power Supply
- Maximum current: 50A
- Power off current consumption: 60mA
- Supply voltage (12V): 9-16VDC
Connector Details
- NMEA 2000®: Micro 5-pin M12 male
- Channels: Molex MX150 L 16 circuits
- Power terminal: M6 bolt
-
