SKU:
CN ST0100237000
€ 801,75
1-2 weeks delivery time
-
+
The Garmin EmpirBus SP12, Horizontal, is a high-performance digital switch supporting control and monitoring of EmpirBus systems. With 12 switches, it offers various configurations for managing complex power systems and includes both digital and analog input options.
- Description
- Ask a Question
-

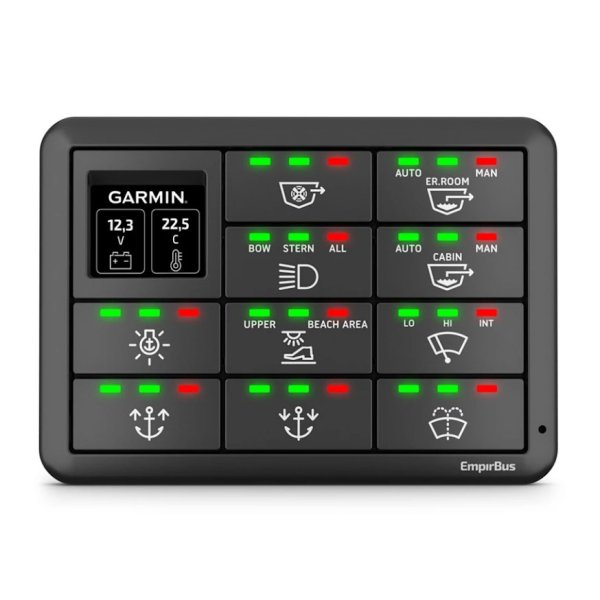

Garmin EmpirBus SP12, Horizontal
The Garmin EmpirBus SP12 Horizontal is a high-performance digital switch designed for both control and monitoring of EmpirBus systems. This model supports 12 switches, available in either a non-screen 12x2-way or a screen-equipped 10x2-way configuration.
- Dimensions: 230 x 106 x 38 mm (9.1″ x 4.2″ x 1.5″)
- Weight: 400 g (14.1 oz)
- Ambient temperature: -20° C to +55° C
- Enclosure water rating: IP65
- Communication: CAN-bus NMEA 2000® network, LEN-0
- Output: High side 13 ch 10A, 7 ch 5A
- Digital input: Ground contact switch input 15, Bilge pump monitor 2
- Analog Input: Volt 3 @ 0-16 V +/-1%, Resistance 2 @ 0-1500 ohm +/- 5%
- Power Supply: Maximum current 50A, Power off current consumption 60mA, Supply voltage (12V) 9-16VDC
- Connector: NMEA 2000® Micro 5-pin M12 male, Channels Molex MX150 L 16 circuits, Power terminal M6 bolt
-
