Digital Yacht ZDIGCLA2000 - Digital Deep Sea CLA2000 AIS Transponder

Digital Yacht ZDIGCLA2000 - Digital Deep Sea CLA2000 AIS Transponder

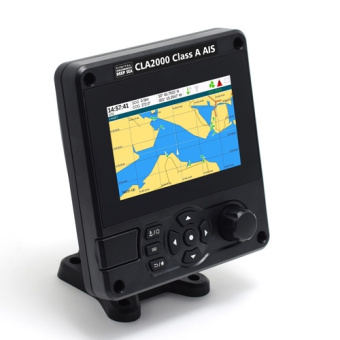

The Digital Yacht ZDIGCLA2000 is the ultimate SOLAS and inland waterway globally approved Class A AIS transponder. Featuring a waterproof design to IP67 standards and a fully integrated 5” hi-res color display, the CLA2000 supports a wide range of functionality including electronic chart navigation with optional C-Map MAX charting and AIS target management.

Utilizing advanced core SDR AIS technology, the CLA2000 delivers superior real-world AIS message receive and transmit (12.5W) capabilities, ensuring enhanced target visibility and maximum range. It is ideal for SOLAS mandated vessels over 300GRT, workboats, rescue services, inland waterways users, RIBs, and recreational craft seeking premium AIS performance and safety.

In addition to regular Class B, AtoNs, and Class A AIS detection, the CLA2000 features optimized software for detecting AIS SART and MOB devices, with automatic alarm activation upon detection. The integrated micro SD card reader supports software updates and data logging, while compatibility with C-Map MAX charting cards allows for optional detailed background charting.

With an integrated wireless interface, the CLA2000 enables AIS and position data to be sent to smartphones, tablets, and PCs for use with navigation apps. It offers user-programmable alarms for Closest Point of Approach (CPA) and Time to Closest Point of Approach (TCPA), advanced target filtering, and external alarm and remote silence switch capability.

Specifications:

• Globally approved Class A AIS transponder
• High-resolution, 800 x 480 pixel 5” color display (MKD) with easy-to-use, fast user interface
• Bracket or flush mount – waterproof to IPX7
• Integrated GPS with external antenna (supplied) or utilize external NMEA feed (user-selectable)
• 3 x NMEA 0183 interface (bi-directional for plotter, ECDIS, radar, etc.)
• 3 x sensor input ports (e.g., BlueBoard, external GNSS, gyro, etc.)
• NMEA 2000 interface
• Built-in SD card slot for AIS data port logging or C-Map MAX mapping capability with optional C-Map data card
• Built-in Wi-Fi for connection to iPads and tablets for wireless navigation
• Sophisticated AIS SART MOB alarm and display capability
• User-programmable alarms for CPA and TCPA
• Advanced filtering of targets
• External alarm and remote silence switch capability
