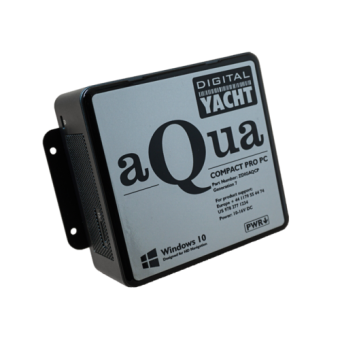

Digital Yacht ZDIGAQCPPL - Aqua Compact PRO+

Digital Yacht ZDIGAQCPPL - Aqua Compact PRO+

The Digital Yacht Aqua Compact Pro+ is powered by a 10th generation Intel Core i7 processor, offering remarkable processing power tailored for modern 3D charting and radar overlay applications. With 6 internal cores, 12 threads, 12MB onboard cache, and clock speeds ranging from 1.1 to 4.7GHz, it ensures optimal performance while maintaining an average power consumption of around 25W, thus minimizing battery drain.

The new Aqua Compact Pro+ boasts a larger rugged 480GB solid-state hard drive and is equipped with 8GB of fast DDR4 RAM. Connectivity features include 4 x USB 3.1 ports and an audio headset connector, along with a built-in SD card reader, ideal for use with Timezero software or SmarterTrack navigation software and Navionics data cards.

For enhanced display options, the unit supports up to 3 displays via a dedicated HDMI connector and a Thunderbolt/USB C connector, with support for displays via an appropriate cable. Additionally, it supports 7.1 multichannel digital audio over display connections, making it suitable as an onboard media entertainment center.

Network connectivity is facilitated by a wired Ethernet Gigabit port and the latest Intel WiFi 6 card, supporting 802.11ax protocols and featuring built-in Bluetooth 5 for easy connectivity.

The Aqua Compact Pro+ caters to demanding navigation applications like MaxSea/Nobeltec TimeZero, even with radar and 3D integration. It operates on direct 12v DC (8-19v input) with approximately 25W power consumption. The compact design, measuring just 115mm x 110mm x 50mm, coupled with easy installation using the supplied mounting bracket, makes it an ideal choice for various marine applications.

Specifications:

• The perfect solution for demanding navigation applications like MaxSea/Nobeltec TimeZero even with radar and 3D integration
• Direct 12v DC Operation (8-19v input), approx 25W power consumption
• i7 processor 10710U (latest 10th generation)
• 8GB DDR4 2133MHz SO-DIMM memory and super-fast 280GB rugged solid-state drive
• Dual display outputs – full-size HDMI and USB C
• Bluetooth 5 and Dual Band WiFi built-in (plus wired Gigabit network port)
• 4 x USB 3.1 ports with charging mode on front panel port
• Front panel-mounted audio jack for audio in/out – ideal as a media center
• Windows 10 operating system
• Built-in mic for Cortana speech control and recognition – voice control is here!
• Micro SD slot – ideal for Navionics cards with our SmarterTrack PC navigation software
• Just 115mm x 110mm x 50mm
• Easy installation with supplied mounting bracket
• LINUX option at no extra charge
