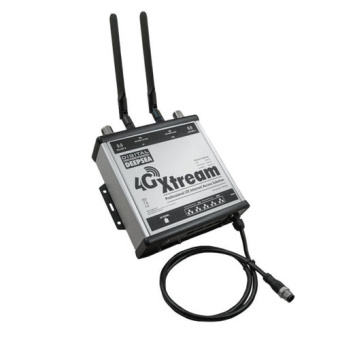

Digital Yacht ZDIG4GX - 4G Xtream System

Digital Yacht ZDIG4GX - 4G Xtream System

The Digital Yacht ZDIG4GX - 4G Xtream System is the latest premium LTE (cellular) internet access solution designed for marine applications, featuring a NMEA 2000 interface. This comprehensive system includes dual external antennas, deck mounting hardware, and cabling, ensuring easy installation. Using advanced MIMO technology and two wide-band LTE antennas, it delivers fast connectivity of up to 300 MBs (network dependent).

The system boasts a built-in dual-band wifi router supporting multiple connections, dual SIM slots with auto failover, built-in GPS for anchor alarm and tracking applications, and an NMEA 2000 interface for navigation and instrument data connectivity. Additionally, it features a Bluetooth interface for future connectivity applications.

With its NMEA 2000 interface, the 4G Xtream System allows for seamless integration of navigation data with popular iOS and Android apps and navigation software such as Navionics, iSailor, and more. Ideal for large yachts, workboats, tugs, and commercial ships, it ensures reliable, low-cost coastal internet and in-port connectivity.

Key features include independent dual-band wifi for interconnection to mobile devices, allowing apps on smartphones and tablets to utilize navigation and instrumentation data. For external high-power wifi access, the system supports a WiFi booster antenna, enabling seamless switching between wifi and LTE connections.

Configuration is straightforward, requiring only the insertion of SIM cards. The system's dual SIM slots allow for flexibility, enabling the use of SIMs from different network operators. Moreover, it includes Digital input/output connectivity for IoT/control applications (Available Q3 2021) and SMS addressability.

Features:

• Latest Cat 6 LTE MIMO technology with range up to 25NM offshore (network dependent)
• Dual SIM slots with auto failover or manual selection
• Two external, high-gain, wide-bandwidth antennas
• Dual-band integrated wifi router (2.4 & 5 GHz) – independently configurable
• Built-in NMEA 2000 interface to transmit NMEA 2000 data over the wireless and wired network to compatible apps
• Built-in GPS with external patch antenna for IoT and tracking applications
• Built-in Bluetooth with antenna for future applications
• 3 x LAN ports
• 1 x WAN port for additional internet connectivity
• Digital input/output connectivity for IoT/control applications (Available Q3 2021)
• SMS addressable
• Optional 10m & 20m LMR400 assemblies

Specifications:

• Power: -40 to +75 C
• Main unit dimensions: 180 x125 x 55mm (ex antennas)
• Weight: 3.8 kg
• Protection: IPX4
• 4G/LTE Technology
• 2G/3G Fallback
• 4G(LTE) CAT 6 up to 300 MB/s
• Support for various LTE FDD bands and TDD bands
• Dual MIMO antennas
• Dual-band independent 2.4 & 5 GHz wifi
• Interfaces: 3 x LAN 10/100 Ethernet Port, 1 x WAN 10/100 Ethernet Port, WiFi 802.11 b/g/n/ac
