SKU:
EX 80-911-0011-00
€ 302,46
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The CZone Switch Control Interface (SCI) connects traditional mechanical switches to the CZone network, simplifying wiring and supporting existing switch choices. It allows a single switch to control multiple channels, attaches easily to switch panels, and enables multiple switches to manage a single channel. The interface features programmable switch types, dimmable backlighting for labels, and outputs for system status and fault codes, with 8 inputs per module for enhanced functionality.
- Description
- Ask a Question
-

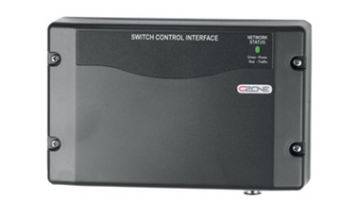

CZone Switch Control Interface (SCI) For Seal
The CZone Switch Control Interface (SCI) bridges the gap between modern CZone networks and traditional mechanical switches, providing a reliable and flexible solution for users and manufacturers alike. It simplifies wiring, supports existing switch choices, and enhances installation options while ensuring protection against failures.

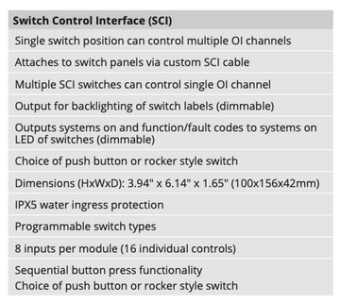

- Product Number: 80-911-0011-00
- Protection Degree: IPX5 water ingress
- Dimensions: 100 x 156 x 42 mm (3.9 x 6.1 x 1.7 inches)

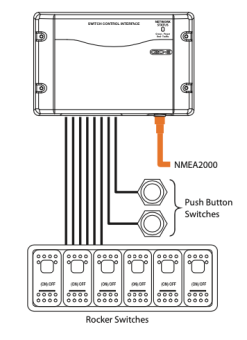

- Single switch position can control multiple Output Interface channels.
- Attaches to switch panels via a custom Switch Control Interface cable.
- Multiple Switch Control Interface switches can control a single Output Interface channel.
- Output for backlighting of switch labels (dimmable).
- Outputs systems on and function/fault codes to systems on LED of switches (dimmable).
- Programmable switch types.
- 8 inputs per module (16 individual controls).
- Sequential button press functionality.
-
