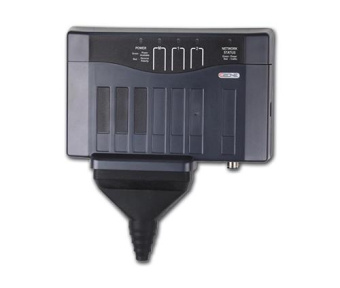

CZone Motor Output Interface (MOI) With Connector and Protective Boot

SKU: EX 80-911-0007-00

€ 753,51

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The CZone Motor Output Interface (MOI) offers dual outputs for DC motors that require reverse polarity to change direction, such as in electric window mechanisms. It includes two standard output channels for single motor control, rated at 20 A each, and features built-in circuit protection. High and low alarm levels can be set for all inputs.

Description
Ask a Question

CZone Motor Output Interface (MOI) With Connector and Protective Boot

The Motor Output Interface (MOI) features a dual output for DC motors that require reverse polarity to change the direction of their mechanical operation. For instance, a DC motor in an electric window mechanism moves the window up or down, depending on the polarity of the motor supply. Additionally, the Motor Output Interface provides two standard output channels, similar to the Output Interface, with capabilities for single motor control and two normal channels per unit, rated at 20 A per output. It includes built-in circuit protection. Note: High and low alarm levels can be set for all inputs.
- Product Number: 80-911-0007-00
- Unit of Sale: 1 Piece
- EAN Code: 0843687001942
- Brand: CZone
- Suitable for Test: 2
- Product Width: 200 mm
- Product Height: 45 mm
- Product Length: 128 mm
