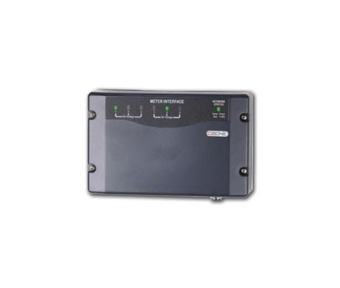

CZone Meter Interface (MI) With Seal & Plug

SKU: EX 80-911-0005-00

€ 524,15

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The CZone Meter Interface (MI) accepts inputs from external AC and DC energy sensors, measuring AC and DC voltage, amperes, AC kWatts, and DC battery capacity in ampere-hours and remaining percentage, all with clear alarm signals. It features multiple voltage and current inputs for both AC and DC, calculates true RMS current, and has a resolution of up to 0.1 A. The device outputs standard NMEA 2000 monitoring protocols, and alarm levels can be configured for each input.

Description
Ask a Question

CZone Meter Interface (MI) With Seal & Plug

The Meter Interface accepts input from external AC and DC energy sensors, including AC and DC voltage and amperes, AC kWatts, DC battery capacity in ampere-hours, and remaining %. All features come with clear high and low alarm signals.
- Product Number: 80-911-0005-00
- Input AC: 3x AC voltage inputs (multi-voltage)
- Input AC: 2x AC current inputs
- Calculates true RMS current
- Input DC: 3x DC voltage inputs (multi-voltage)
- Input DC: 2x DC current inputs
- Calculates battery capacity in ampere-hours and remaining charge percentage
- Current measurement resolution up to 0.1 A
- Standard NMEA 2000 monitoring protocols output
- Note: High and low alarm levels can be set for all inputs
General Information:
- Sales Unit: 1 Piece
- EAN Code: 0843687001935
- Brand: CZone
- Suitable for Test: 2
- Product Width: 156 mm
- Product Height: 42 mm
- Product Length: 100 mm
