SKU:
EX 80-911-0160-00
€ 660,35
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The CZone Contact 6 Plus is a reliable and affordable digital switching solution featuring six 15A solid-state fused outputs with circuit bypass for enhanced system reliability. It connects to NMEA 2000 networks and is compatible with major marine chart plotters and multi-function displays, allowing direct control of electrical systems along with fault notifications. With features like circuit dimming, voltage monitoring, and built-in load shedding, it is an affordable add-on for larger CZone systems.
- Description
- Ask a Question
-

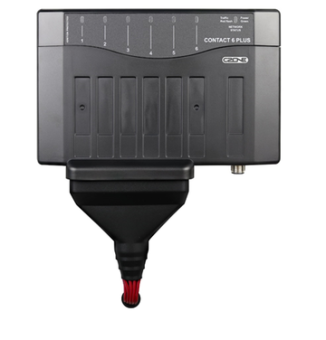

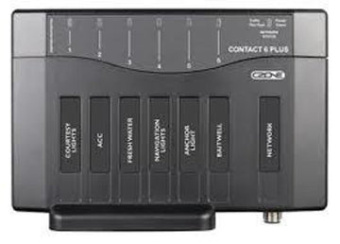

CZone Contact 6 Plus Interface Incl Connectors/Seal
The CZone Contact 6 Plus is a reliable and cost-effective digital switching solution that leverages advanced CZone technology. It offers six 15A solid-state fused outputs with circuit bypass for enhanced system reliability.
- Product Number: 80-911-0160-00
- Output wire range: 0.5 - 6 mm (24 AWG – 8 AWG)
- NMEA 2000 connectivity: 1 x CAN Micro-C port
- Dimming: All channels, PWM at 100 Hz
- Output channels: 6 x 15 A – 12/24 V
- Circuit protection: ATC fuse with blown fuse alarms
- Circuit bypass: Mechanical fuse bypass on all channels
- Max. current: 60 A total module current
- Power supply: M6 (1/4)
- Supply voltage: 9-16 V via NMEA 2000 network
- Protection degree: IPx5 (mounted vertical)
- Dimensions: 128.5 x 202.5 x 45 mm (5.1 x 8.0 x 1.8 inch)
- Weight: 0.6 kg (1.3 lb)
- Compliance: CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected
-
