SKU:
EX 80-911-0119-00
€ 2.841,87
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Combination Output Interface (COI) integrates multiple input and output devices into a single, compact module, serving as a modern replacement for traditional DC fuse boxes and circuit breaker panels. Utilizing advanced digital switching technology, it simplifies installation and operation while providing multiple outputs, circuit protection, and monitoring features, all housed in a rugged design compliant with safety standards.
- Description
- Ask a Question
-

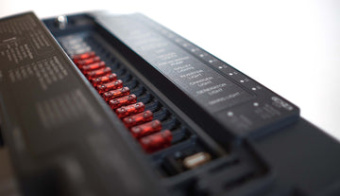

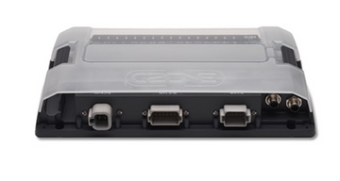

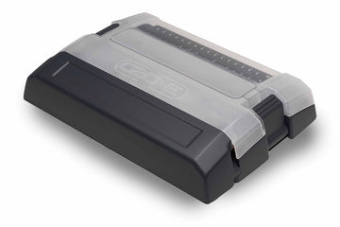

CZone Combined Output Interface (COI)
The Combination Output Interface (COI) integrates multiple input and output devices into one compact module, providing an intelligent alternative to traditional DC fuse boxes and circuit breaker panels through digital switching technology.
- Product Number: 80-911-0119-00
- General Specifications:
- Channels: 30
- Output Channels (high): 4 x 25 A
- Output Channels (low): 12 x 10 A (dimmable)
- Analogue Inputs: 8 (positive or negative switching, 0-32 V), 0-1000 Ohm resistance, 4-20 mA current
- Communication Protocol: NMEA 2000
- Circuit Current Monitoring: All 16 output channels
- Circuit Protection: Configurable electronic fuse + mechanical fuse and bypass
- Additional Monitoring: 2 voltage sensors (on main positive stud and NMEA 2000 power)
- Digital Switch Inputs: 6 digital input switches with backlight via digital breakout
- Max. Continuous Current: 150 A at 40 °C (derating > 40 °C)
- NMEA 2000 Power Consumption: 250 mA at 12 V, 180 mA at 12 V standby
- Connectors: Deutsch
- Power Supply: M8 (5/16”) stud positive, M6 (1/4”) stud negative
- Supply Voltage: 9-32 V (with power available LED and voltage monitoring)
- Bilge Pump Circuits: 4 high current channels with integrated manual control and 'pump running' detection
- Protection Degree: IPx5 (mounted at 0° +/- 90°)
- Dimensions (including optional cable cover): 338 x 235 x 62 mm (13.3 x 9.3 x 2.4 inch)
- Weight: 1.9 kg (4.2 lb)
- Compliance: CE, ABYC, NMEA
-
