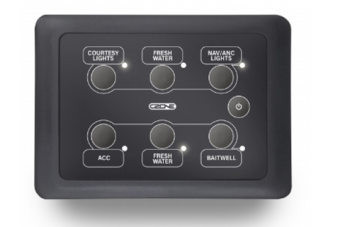

CZone 6-Way Waterproof Keypad 3x2 Landscape

CZone 6-Way Waterproof Keypad 3x2 Landscape

The CZone 6-Way Waterproof Keypad offers a seamless integration of advanced digital switching technology at an attractive price. Designed for easy installation, this keypad is perfect for enhancing your marine or automotive experience.

• Product Number: 80-911-0162-00
• IPX7 waterproof keypads
• LED indicators for circuit operation with blown fuse fault indication
• Dimmable RGB circuit backlighting
• Low profile with three mounting options
• Easy installation with a single plug connection
• Built-in ignition protected fuse panel for simplified setup
• Single cable installation behind the dash
• Circuit dimming and smooth start effects
• Status LEDs for all outputs
• Ultra-low current draw
• Built-in timer functions for circuits like live bait tanks
• Time of day switching with GPS time on the network
• Voltage monitoring on the NMEA2000 network with load shedding
• Default factory configuration for easy plug-and-play installation
• Affordable add-on module for larger CZone systems
• Blown fuse detection and warning system
• Customized overlays for keypads

General Specifications

• NMEA 2000 connectivity: 1 x CAN Micro-C port
• Interface: Keypad
• Backlight color: RGB LED with dimming
• Supply voltage: 9-16 V via CAN
• Mounting: Front and rear mount
• Protection degree: IPX7
• Dimensions (hxwxd): 107 x 77 x 32 mm (4.2 x 3.0 x 1.3 inch)
• Weight: 0.115 kg (0.3 lb)
• Compliance: CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected

Technical Specifications

• Power consumption: max. 56 mA / standby 1.8 mA
• Temperature range (ambient): -15 °C to 55 °C (5 °F to 131 °F)
• Temperature range (storage/non-operating): -40 °C to 85 °C (-40 °F to 185 °F)
