CZone 6-Way Waterproof Keypad 2x3 Portrait

CZone 6-Way Waterproof Keypad 2x3 Portrait

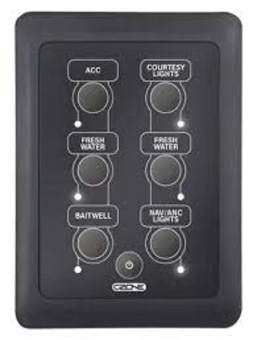

Introducing the CZone 6-Way Waterproof Keypad, product number 80-911-0163-00. This innovative keypad enhances your boating experience with its advanced features and robust design.

• IPX7 waterproof keypads
• LED indicators for circuit operation with blown fuse fault indication
• Dimmable RGB circuit backlighting
• Low profile with three mounting options
• Easy installation using a hole saw with a single plug connection
• Built-in ignition protected fuse panel for simplified installation
• Single cable installation behind the dashboard
• Circuit dimming and smooth start effects
• Status LEDs for all outputs
• Ultra-low current draw
• Built-in timer functions for circuits like live bait tanks
• Time of day switching when GPS time is available on the network
• Voltage monitoring on the NMEA2000 network with load shedding
• Default factory configuration allows for plug-and-play installation with simple one-to-one circuit mapping
• Affordable add-on module for larger CZone systems
• Blown fuse detection and warning system
• Customized overlays for keypads

General Specifications

• NMEA 2000 connectivity: 1 x CAN Micro-C port
• Interface: keypad
• Backlight color: RGB LED with dimming
• Supply voltage: 9-16 V via CAN
• Mounting: front and rear mount
• Protection degree: IPX7
• Dimensions (HxWxD): 107 x 77 x 32 mm (4.2 x 3.0 x 1.3 inches)
• Weight: 0.115 kg (0.3 lb)
• Compliance: CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected

Technical Specifications

• Power consumption: max. 56 mA / standby 1.8 mA
• Temperature range (ambient): -15 °C to 55 °C (5 °F to 131 °F)
• Temperature range (storage/non-operating): -40 °C to 85 °C (-40 °F to 185 °F)
