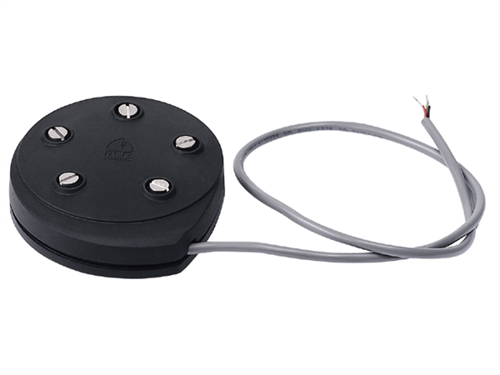

BEP TS1 - Ultrasonic Tank Sender
The TS1 ultrasonic tank transmitter measures levels in fuel (diesel or petrol), drinking water, grey water, and holding tanks. It supports programmable output options and can be tailored for tank dimensions using dedicated software.
- Outputs programmable as 240-33 Ohms, 10-180 Ohms, and 0-5 Volts
- Compact design under 20 mm high with standard SAE 5-hole 33 mm mounting
- Interchangeable with most other tank transmitters on the market
- Programmable for specific tank dimensions via BEP software
- Direct connection to BEP 600-TLM tank monitor at 0-5 Volt setting
- Compatible with several brands including Teleflex, Uflex, Faria, VDO when using resistance output settings
- Calibration needed if used with non-adjustable meters
- Default tank depth setting from 0 to 2000 mm
- Order number: 00598830
- Supplier code: TS1
- Barcode: 870216038476
- Voltage: 10-32 Volts
- Mounting: SAE 5-hole, 33 mm
- Power consumption: 25 mA
- Operating temperature range: 4 to 65 °C
- Accuracy: 3 mm within 200 to 2000 mm range
- Action method: Acoustic noise measurements
- Chemical resistance: Petrol, diesel, water, toilet chemicals
- Compatible with metal and plastic tanks, including grey and black water, petrol, and diesel
-
