€ 26,12
1-2 weeks delivery time
-
+
The BEP BB-12W-2S/DSP is a 12-way bus bar with a cover, designed for use with BEP Marine 900 series switch panels or as a standalone component. It features stainless steel hardware, a tinned copper strip, and supports loads up to 100 A per connection.
- Description
- Ask a Question
-

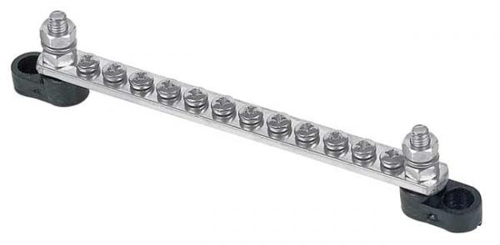

BEP BB-12W-2S/DSP - Bus Bar 12-Way With Cover - Blister
The BEP BB-12W-2S/DSP bus bar offers a robust 12-way connection strip, included as standard with BEP Marine 900 series switch panels, and also sold separately. It features stainless steel hardware and a tinned copper strip designed for reliable high-current applications.
- Order number: 00598771D
- Supplier code: BB-12W-2S/DSP
- Barcode: 870216003849
- Connections: 12
- Dimensions: 177 mm (length) x 15 mm (width) x 29 mm (height)
- Features:
- 4 mm stainless steel screws for connections
- 2 x 6 mm stainless steel bolts with nuts for input
- Tinned copper strip
- 100 A load capacity (150 A for 24-way strip)
- Insulated mounting base
- Includes cover cap
- Packaged in blister pack
-
