The BEP BB-12W-2NC/DSP is a double bus bar connection strip with 2x12 connections, stainless steel screws and bolts, a tinned copper strip, and an insulated mounting base, suitable for multiple circuit connections and comes with a protective cover.
- Description
- Ask a Question
-

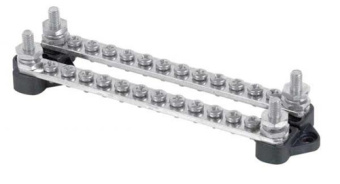

BEP BB-12W-2NC/DSP - Double Bus Bar 2x12-Vd with Cover – Blister
This double bus bar connection strip from BEP is typically supplied with BEP Marine 900 series switch panels but can be purchased separately. It provides a robust and reliable connection solution for multiple electrical circuits.
- 4 mm stainless steel screws for secure connections
- Two 6 mm stainless steel bolts with nuts for input connections
- Tinned copper strip for excellent conductivity
- 100A load capacity (24-way connection strip supports 150A)
- Insulated mounting base for safety
- Can be fitted with a protective cover cap
- Packaged in blister packaging for retail
General:
- Order number: 00598787D
- Supplier code: BB-12W-2NC/DSP
- Barcode: 870216005393
- Connections: 2 x 12
- Product length: 173 mm
- Product width: 42 mm
- Product height: 29 mm
- Execution: With cover cap
-
