BEP 80-600-0022-00 - DC Color Systems Monitor (DCSM) Excluding Shunt

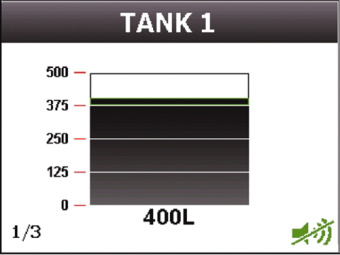

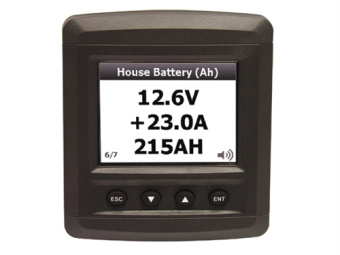

The BEP DC Color Systems Monitor (DCSM) is a sophisticated full-color display designed to monitor complex DC electrical systems commonly found in modern vessels and recreational vehicles. It provides detailed and clear information on electrical systems and tank levels, ensuring precise management of fuel, fresh, grey, and black water tanks. The monitor features an easy-to-read 2.8" color QVGA LCD screen with backlighting for nighttime visibility and a backlit keypad with adjustable brightness.
- 8 generic, user-configurable inputs
- Programmable high/low audio and visual alarms for voltage, current, and tank levels
- Backlit keypad and dimmable screen for easy operation day and night
- Panel or surface mounting options
- Monitors charge and discharge amps for two battery banks
- Displays remaining battery capacity in amp-hours and percentage
- Tracks battery condition, tank fluid levels, and circuit status
- Input voltage range: 8–32 VDC
- Dimensions: 90 mm wide by 100 mm high
General:
- Order number: 00598894
- Supplier code: 80-600-0022-00
- Barcode: 843687003120
- Model: DCSM excl. shunt
- Voltage: 8 - 32 Volts
- Product width: 90 mm
- Product height: 100 mm
-
