$ 76,40
1-2 weeks delivery time
-
+
The BEP 777-Z18W-200 Z-busbar enhances cable termination with 18 terminals and four 6mm studs, offering 200A per bar at 50V DC, featuring high and low-level bars made from tinned copper and stainless steel for optimized space and current capacity.
- Description
- Ask a Question
-

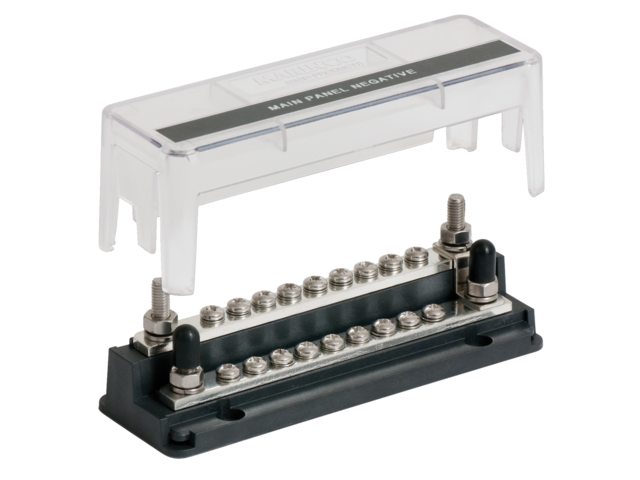

BEP 777-Z18W-200 - Z-Busbar 18 Terminals, 4 Studs
This Z-busbar enhances cable termination efficiency by combining high and low-level bars, optimizing space while maintaining excellent current capacity.
- Article Number: 14425965
- Manufacturer Number: 777-Z18W-200
- Terminals: 18
- Studs: 4 x 6mm
- Maximum current: 200A per bar (2 x 200A total)
- Terminal size: 4mm
- Dimensions (L x W): 147 x 98 mm
- Maximum voltage: 50V DC
- Material: Tinned CDA102 copper conductors
- Stainless steel studs, washers, and nuts
-
