$ 49,27
1-2 weeks delivery time
-
+
The BEP 777-Z10W-200 Z-busbar provides a compact solution for small cable termination with 10 terminals and four 6mm studs, supporting 200A per bar at 50V DC, constructed from tinned copper and stainless steel hardware for space-efficient installations.
- Description
- Ask a Question
-

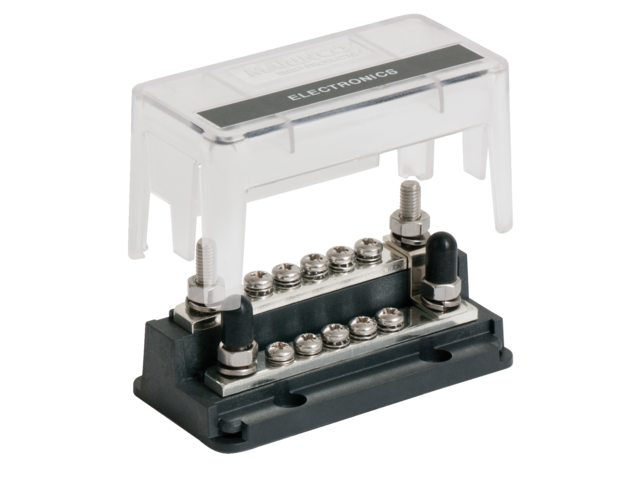

BEP 777-Z10W-200 - Z-Busbar 10 Terminals, 4 Studs
The Pro Installer Z-busbar delivers a compact and space-saving solution for small cable termination, maximizing power density with its innovative high- and low-level bar design.
- Article Number: 14425964
- Manufacturer Number: 777-Z10W-200
- Terminals: 10
- Studs: 4 x 6mm
- Maximum current: 200A per bar (2 x 200A total)
- Terminal size: 4mm
- Dimensions (L x W): 98 x 49 mm
- Maximum voltage: 50V DC
- Material: Tinned CDA102 copper conductors
- Stainless steel studs, washers, and nuts
-
