The BEP 772-DBC-EZ is a dual battery bank control switch with three functions: House, Start, and Emergency Parallel. It supports 400 amps continuous at 48 volts, features tinned copper studs with stainless steel hardware, and is waterproof to IP67. The switch includes removable knobs and side plates for easy servicing.
- Description
- Ask a Question
-

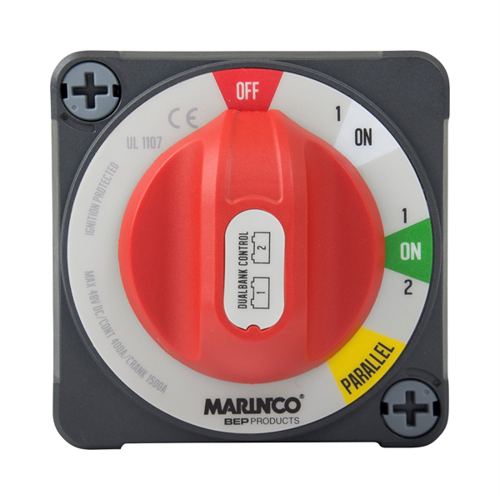

BEP 772-DBC-EZ - Pro Installer 400A Dual Battery Bank Control Switch EZ Mount
The BEP 772-DBC-EZ is a versatile dual bank control switch designed for professional installers, offering three functions in one: House, Start, and Emergency Parallel. This innovative switch provides intuitive and easy control for boaters, with a unique isolated-On position that powers house loads and VHF radio while electrically isolating the engine. Ideal for boats or vehicles with a single engine and house battery bank, it separates deep cycle house batteries from engine starting batteries to protect sensitive electronics from voltage spikes.
- Tested to UL1107 ignition protection and CE certified
- 400A continuous, 600A for 5 minutes intermittent, 1500A for 10 seconds cranking
- Tinned copper 10mm (3/8 inch) studs with stainless steel washers and nuts
- Fiber reinforced plastics construction
- Waterproof to IP67 standard
- Removable knob for isolation during servicing
- 3 removable side plates for additional protection
- Industry standard footprint: 98 x 98 x 93 mm (3.85 x 3.85 x 3.64 inch)
- Surface mounting only with front wiring for ease of installation
- 4x M10 (3/8 inch) connection studs
General Information:
- Order number: 00599225
- Supplier code: 772-DBC-EZ
- Barcode: 843687008583
- Voltage: 48 Volts
- Continuous power: 400 A
- Power for 5 minutes: 600 A
- Power for 10 seconds: 1500 A
- Dimensions (LxWxH): 98 x 98 x 92 mm
- Connections: 4 x 10 mm studs
- Model: 772-DBC-EZ
-
