€ 91,70
1-2 weeks delivery time
-
+
The BEP 771-S-EZ battery selector switch offers easy front wiring and compact design for efficient marine installations. Rated for 400 volts continuous at 48 volts and supporting up to 1500 amps briefly, it includes stainless steel hardware and is waterproof to IP66. It features removable knobs and side plates for service and protection.
- Description
- Ask a Question
-

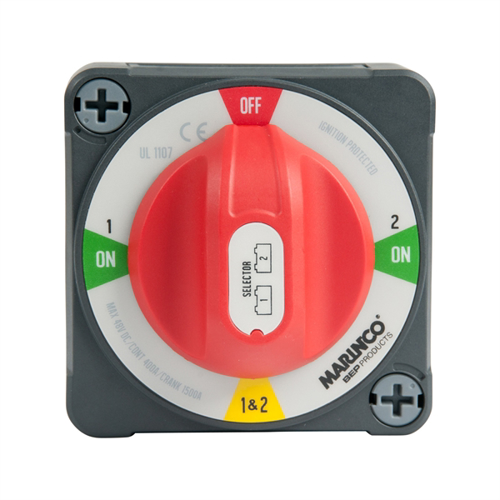

BEP 771-S-EZ - Pro Installer 400A Battery Selector Switch EZ Mount
The 771-S-EZ battery selector switch simplifies wiring with its front-access design, enabling quick and easy installation. Engineered for marine environments, it clusters neatly with the Pro Installer Busbar Range for compact setups. This switch combines ergonomic design with durable materials and advanced features to meet both installer and user needs.
- Order number: 00599223
- Supplier code: 771-S-EZ
- Barcode: 843687007692
- Voltage: 48 Volts
- Power continuous: 400 A
- Power 5 minutes: 600 A
- Power 10 seconds: 1500 A
- Dimensions (LxWxH): 98 x 98 x 92 mm
- Connections: 3 x 10 mm tinned copper studs
- Tested to UL1107 ignition protection and CE certified
- Waterproof rating IP66
- Stainless steel washers and nuts, fiber reinforced plastics
- Removable knob for isolation during servicing
- 3 removable sideplates for added protection
- Industry standard 3.85" x 3.85" footprint
-
